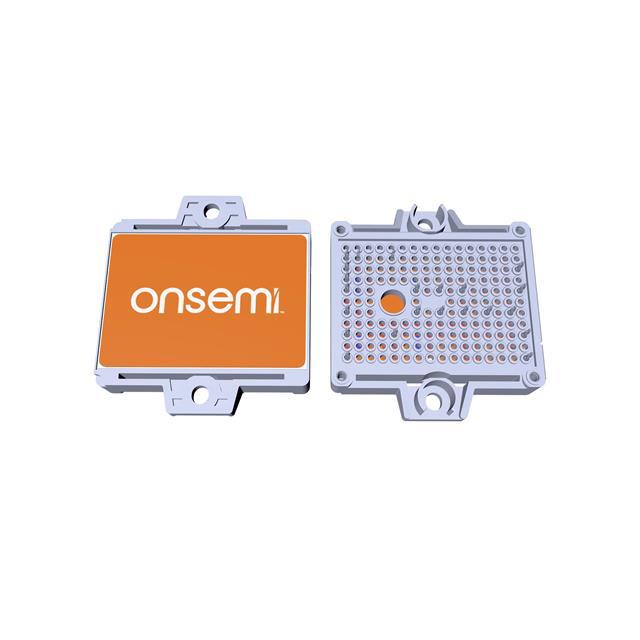

onsemi NXH020U90MNF2PTG
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4.3V @ 40mA
Operating Temperature:
-40°C ~ 175°C (TJ)
Package / Case:
Module
Rds On (Max) @ Id, Vgs:
14mOhm @ 100A, 15V
Gate Charge (Qg) (Max) @ Vgs:
546.4nC @ 15V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
149A (Tc)
Configuration:
2 N-Channel (Dual)
Package:
Tray
Drain to Source Voltage (Vdss):
900V
Moisture Sensitivity Level (MSL):
Not Applicable
Input Capacitance (Ciss) (Max) @ Vds:
7007pF @ 450V
standardLeadTime:
6 Weeks
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
-
Power - Max:
352W (Tj)
Technology:
Silicon Carbide (SiC)
Base Product Number:
NXH020
ECCN:
EAR99
Maximum Drain Source Voltage:
900 V
Maximum Continuous Drain Current:
149 A
Mounting Type:
Surface Mount
Transistor Material:
SiC
Channel Type:
N
Pin Count:
20
Checking for live stock
FAQs
Yes. You can also search NXH020U90MNF2PTG on website for other similar products.
We accept all major payment methods for all products including ET24096251. Please check your shopping cart at the time of order.
You can order onsemi brand products with NXH020U90MNF2PTG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FET, MOSFET Arrays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi NXH020U90MNF2PTG. You can also check on our website or by contacting our customer support team for further order details on onsemi NXH020U90MNF2PTG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24096251 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24096251.
Yes. We ship NXH020U90MNF2PTG Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is NXH020U90MNF2PTG. It has a maximum of 900 v drain source voltage. While 149 a of maximum continuous drain current. The product is available in surface mount configuration. The transistor is manufactured from highly durable sic material. The product is available in [Cannel Type] channel. It contains 20 pins. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4.3v @ 40ma. The product has -40°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in module. It has a maximum Rds On and voltage of 14mohm @ 100a, 15v. The maximum gate charge and given voltages include 546.4nc @ 15v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 149a (tc). The product is available in 2 n-channel (dual) configuration. It is shipped in tray package . The product has a 900v drain to source voltage. Its typical moisture sensitivity level is not applicable. The product's input capacitance at maximum includes 7007pf @ 450v. It has a long 6 weeks standard lead time. The product is available in chassis mount configuration. The maximum power of the product is 352w (tj). This product use silicon carbide (sic) technology. Moreover, it corresponds to nxh020, a base product number of the product. The product is designated with the ear99 code number.
