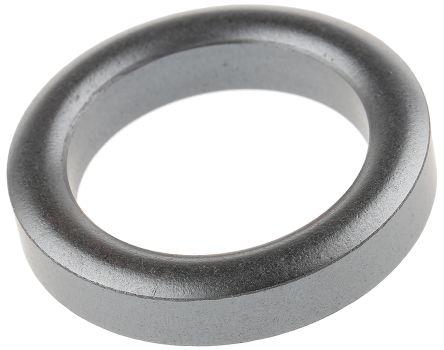

FERROXCUBE Ferrite Ring Toroid Core, For: Choke, Current Regulation, Energy Storage, Transformer, 14.6 x 8.2 x 5.5mm
Product Information
Dimensions:
14.6 x 8.2 x 5.5mm
Outer Diameter:
14.6mm
Material:
Ferrite
Height:
5.5mm
Application:
Choke, Current Regulation, Energy Storage, Transformer
Inner Diameter:
8.2mm
Type:
Toroid Core
Initial Permeability (µi):
2300
RoHS Status:
ROHS3 Compliant
Width:
-
Tolerance:
±25%
Finish:
Nylon
Effective Length (le) mm:
35
Effective Magnetic Volume (Ve) mm³:
430
Material:
3C90
Gap:
Ungapped
Core Type:
Toroid
Inductance Factor (Al):
1.015 µH
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
12 Weeks
Diameter:
0.575" (14.60mm)
Core Factor (ΣI/A) mm⁻¹:
2.84
Series:
-
Effective Area (Ae) mm²:
12.3
Supplier Device Package:
TN 14 x 9 x 5
Height:
0.217" (5.51mm)
Checking for live stock
FAQs
Yes. You can also search TN14/9/5-3C90 on website for other similar products.
We accept all major payment methods for all products including ET13878003. Please check your shopping cart at the time of order.
You can order FERROXCUBE brand products with TN14/9/5-3C90 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Rings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of FERROXCUBE Ferrite Ring Toroid Core, For: Choke, Current Regulation, Energy Storage, Transformer, 14.6 x 8.2 x 5.5mm. You can also check on our website or by contacting our customer support team for further order details on FERROXCUBE Ferrite Ring Toroid Core, For: Choke, Current Regulation, Energy Storage, Transformer, 14.6 x 8.2 x 5.5mm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13878003 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "FERROXCUBE" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13878003.
Yes. We ship TN14/9/5-3C90 Internationally to many countries around the world.
This is Ferrite Ring Toroid Core For: Choke Current Regulation Energy Storage Transformer 14.6 x 8.2 x 5.5mm manufactured by FERROXCUBE. The manufacturer part number is TN14/9/5-3C90. The given dimensions of the product include 14.6 x 8.2 x 5.5mm. Its outer diameter is 14.6mm. The product is made from highly stable and reliable ferrite. In addition, the height is 5.5mm. Applications Information involves choke, current regulation, energy storage, transformer. The inner diameter of the product is 8.2mm. It comes in toroid core configuration. The product features 2300 initial permeability. The product is rohs3 compliant. It features ±25% of tolerance value. A quality product with a nice nylon finish. A 35 of effective length. It features 430 effective magnetic volume. The product is made from highly stable and reliable 3c90. Gap Options: ungapped. Robust product with a toroid core. It carries 1.015 µh of inductance factor. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. It has a long 12 weeks standard lead time. Its diameter is 0.575" (14.60mm). Features 12.3 effective area. tn 14 x 9 x 5 is the supplier device package value. In addition, the height is 0.217" (5.51mm).
