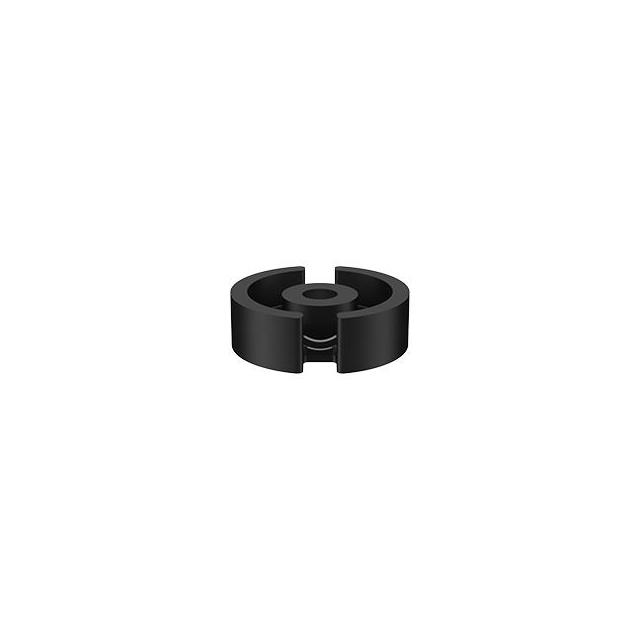

EPCOS - TDK Electronics B65541T0315A048

B65541T0315A048 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
201
Tolerance:
±3%
Minimum Core Cross Section (Amin) mm²:
20
Finish:
Uncoated
Effective Length (le) mm:
20
Effective Magnetic Volume (Ve) mm³:
500
Material:
N48
REACH Status:
REACH Unaffected
Gap:
Gapped
Core Type:
P (Pot Core)
Inductance Factor (Al):
315 nH
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
10 Weeks
Diameter:
0.563" (14.30mm)
Core Factor (ΣI/A) mm⁻¹:
0.8
Series:
P14/8
Effective Area (Ae) mm²:
25
Supplier Device Package:
P 14 x 8
Height:
0.167" (4.25mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65541T0315A048. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 201. It features ±3% of tolerance value. Its minimum core cross-section is 20. A quality product with a nice uncoated finish. A 20 of effective length. It features 500 effective magnetic volume. The product is made from highly stable and reliable n48. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a p (pot core) core. It carries 315 nh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is not applicable. It has a long 10 weeks standard lead time. Its diameter is 0.563" (14.30mm). The product p14/8, is a highly preferred choice for users. Features 25 effective area. p 14 x 8 is the supplier device package value. In addition, the height is 0.167" (4.25mm). The product is designated with the ear99 code number.

pdf icon
Multiple Devices Supplier Change 23/Oct/2020(PCN Assembly/Origin)
pdf icon
B6554x Series(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B65541T0315A048 on website for other similar products.
We accept all major payment methods for all products including ET20656938. Please check your shopping cart at the time of order.
You can order EPCOS - TDK Electronics brand products with B65541T0315A048 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Cores category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS - TDK Electronics B65541T0315A048. You can also check on our website or by contacting our customer support team for further order details on EPCOS - TDK Electronics B65541T0315A048.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20656938 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS - TDK Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20656938.
Yes. We ship B65541T0315A048 Internationally to many countries around the world.
