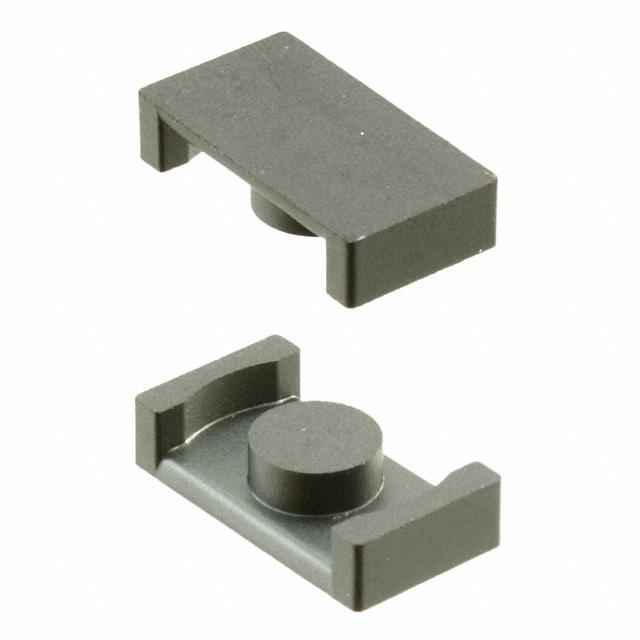

EPCOS - TDK Electronics B65525J0160A087

B65525J0160A087 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Initial Permeability (µi):
2200
HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
0.236" (6.00mm)
Effective Permeability (µe):
140
Tolerance:
±3%
Finish:
Uncoated
Effective Length (le) mm:
14.1
Effective Magnetic Volume (Ve) mm³:
174
Material:
N87
REACH Status:
REACH Unaffected
Gap:
Gapped
edacadModel:
B65525J0160A087 Models
edacadModelUrl:
/en/models/3913735
Core Type:
ER
Inductance Factor (Al):
160 nH
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
0.433" (11.00mm)
standardLeadTime:
10 Weeks
Diameter:
-
Core Factor (ΣI/A) mm⁻¹:
1.1
Series:
ER11/2.5/6
Effective Area (Ae) mm²:
12.4
Supplier Device Package:
ER 11 x 5
Height:
0.098" (2.50mm)
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B65525J0160A087. The product features 2200 initial permeability. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Furthermore, the product is 0.236" (6.00mm) wide. Features effective permeability of 140. It features ±3% of tolerance value. A quality product with a nice uncoated finish. A 14.1 of effective length. It features 174 effective magnetic volume. The product is made from highly stable and reliable n87. In addition, it is reach unaffected. Gap Options: gapped. Robust product with a er core. It carries 160 nh of inductance factor. It is shipped in box package . Its typical moisture sensitivity level is not applicable. Its accurate length is 0.433" (11.00mm). It has a long 10 weeks standard lead time. The product er11/2.5/6, is a highly preferred choice for users. Features 12.4 effective area. er 11 x 5 is the supplier device package value. In addition, the height is 0.098" (2.50mm). The product is designated with the ear99 code number.

pdf icon
B65525,26 Series(Datasheets)
pdf icon
TDK Electronics RoHS & REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B65525J0160A087 on website for other similar products.
We accept all major payment methods for all products including ET20617973. Please check your shopping cart at the time of order.
You can order EPCOS - TDK Electronics brand products with B65525J0160A087 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Cores category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS - TDK Electronics B65525J0160A087. You can also check on our website or by contacting our customer support team for further order details on EPCOS - TDK Electronics B65525J0160A087.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20617973 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS - TDK Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20617973.
Yes. We ship B65525J0160A087 Internationally to many countries around the world.
