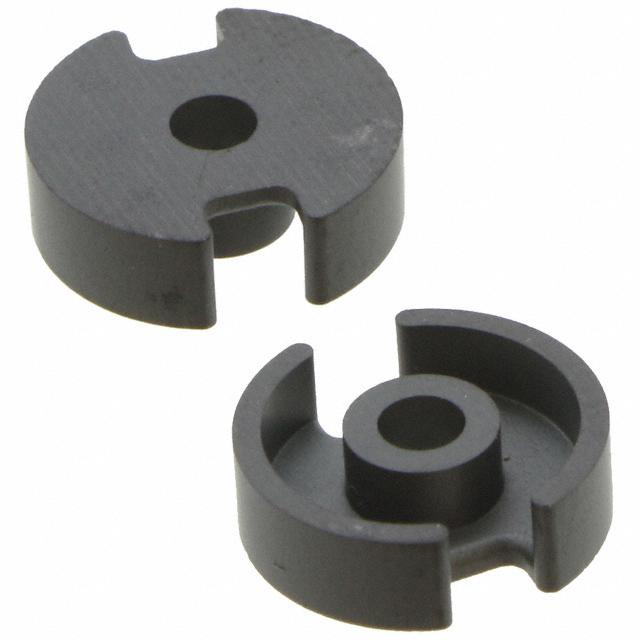

TDK Corporation PC40P9/5Z-52H

PC40P9-5Z-52H TDK Corporation PC40P9/5Z-52H
TDK Corporation

Product Information

HTSUS:
8504.90.9630
RoHS Status:
ROHS3 Compliant
Width:
-
Effective Permeability (µe):
821.0
Tolerance:
-
Finish:
Uncoated
Effective Length (le) mm:
12.4
Effective Magnetic Volume (Ve) mm³:
124.0
title:
PC40P9/5Z-52H
Material:
PC40
Gap:
Ungapped
Core Type:
P (Pot Core)
Manufacturer:
TDK Corporation
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
-
Diameter:
0.288" (7.33mm)
Core Factor (ΣI/A) mm⁻¹:
1.24
Series:
-
Effective Area (Ae) mm²:
10.0
Supplier Device Package:
P 9 x 5
Height:
0.136" (3.45mm)
Packaging:
Tray
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is PC40P9/5Z-52H. It is assigned with possible HTSUS value of 8504.90.9630. The product is rohs3 compliant. Features effective permeability of 821.0. A quality product with a nice uncoated finish. A 12.4 of effective length. It features 124.0 effective magnetic volume. The product is made from highly stable and reliable pc40. Gap Options: ungapped. Robust product with a p (pot core) core. The tdk corporation's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). Its diameter is 0.288" (7.33mm). Features 10.0 effective area. p 9 x 5 is the supplier device package value. In addition, the height is 0.136" (3.45mm). In addition, tray is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs 03/Jun/2022(PCN Obsolescence/ EOL)
pdf icon
PC40P9/5Z-52H Spec(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PC40P9/5Z-52H on website for other similar products.
We accept all major payment methods for all products including ET15119511. Please check your shopping cart at the time of order.
You can order TDK Corporation brand products with PC40P9/5Z-52H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ferrite Cores category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TDK Corporation PC40P9/5Z-52H. You can also check on our website or by contacting our customer support team for further order details on TDK Corporation PC40P9/5Z-52H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15119511 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TDK Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15119511.
Yes. We ship PC40P9/5Z-52H Internationally to many countries around the world.
