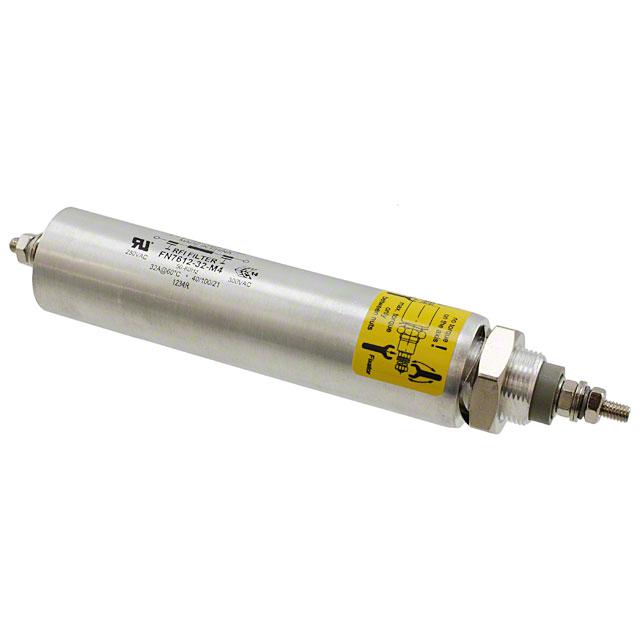

Schaffner EMC Inc. FN7612-32-M4

FN7612-32-M4 Schaffner EMC Inc.
Schaffner EMC Inc.

Product Information

Center / Cutoff Frequency:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Current:
32 A
Attenuation Value:
-
Package / Case:
Axial - Threaded Terminals
Type:
Low Pass
Voltage - Rated:
1000V (1kV)
ESD Protection:
No
REACH Status:
REACH Unaffected
Applications:
Data Lines for Mobile Devices
Number of Channels:
1
Resistance - Channel (Ohms):
0.00092
Package:
Tray
Size / Dimension:
0.984" Dia x 4.528" L (25.00mm x 115.00mm)
Values:
L = 70nH, C = 0.1µF
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Bolt Mount
Series:
FN 761X
Operating Temperature:
-40°C ~ 100°C
Height:
-
Filter Order:
3rd
Technology:
LC (Pi)
Base Product Number:
FN7612
ECCN:
EAR99
Checking for live stock

This is manufactured by Schaffner EMC Inc.. The manufacturer part number is FN7612-32-M4. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. Features a 32 a current in A. Moreover, the product comes in axial - threaded terminals. It comes in low pass configuration. It also exhibits voltage rating of 1000v (1kv). ESD Protected - no. In addition, it is reach unaffected. The product is widely employed in data lines for mobile devices. It is supplied with 1 channels. Carreis the channel resistance of 0.00092 ohms. It is shipped in tray package . The product's diameters include 0.984" dia x 4.528" l (25.00mm x 115.00mm). Values include - l = 70nh, c = 0.1µf . It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in bolt mount configuration. The product fn 761x, is a highly preferred choice for users. The product has -40°c ~ 100°c operating temperature range. The filter is arrange in 3rd order. This product use lc (pi) technology. Moreover, it corresponds to fn7612, a base product number of the product. The product is designated with the ear99 code number.
