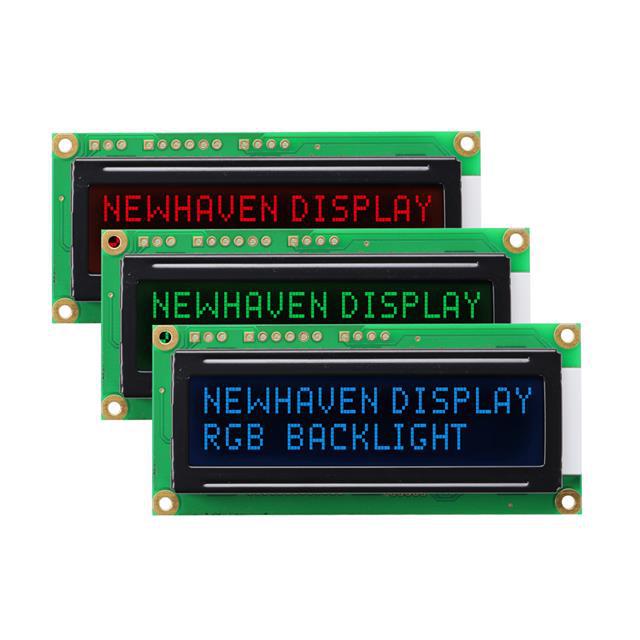

Newhaven Display Intl NHD-0216K3Z-NS(RGB)-FBW-V3

NHD-0216K3Z-NS-RGB--FBW-V3 Newhaven Display Intl NHD-0216K3Z-NS(RGB)-FBW-V3
Newhaven Display Intl

Product Information

Character Size:
5.23mm H x 3.00mm W
HTSUS:
8531.20.0020
RoHS Status:
ROHS3 Compliant
Character Format:
5 x 8 Dots
Display Format:
16 x 2
Operating Temperature:
-20°C ~ 70°C
Controller Type:
PIC16F693
REACH Status:
REACH Unaffected
edacadModel:
NHD-0216K3Z-NS(RGB)-FBW-V3 Models
Interface:
I²C, RS-232, SPI
Package:
Bulk
Viewing Area:
64.50mm L x 16.40mm W
Moisture Sensitivity Level (MSL):
Not Applicable
edacadModelUrl:
/en/models/3507741
Text Color:
Red/Green/Blue
standardLeadTime:
16 Weeks
Background Color:
Black
Display Type:
FSTN - Film Super-Twisted Nematic
Series:
-
Number of Characters:
32
Outline L x W x H:
80.00mm x 36.00mm x 13.50mm
Voltage - Supply:
4.7V ~ 5.5V
Base Product Number:
NHD-0216
Display Mode:
Transmissive
Dot Size:
0.56mm W x 0.61mm H
Backlight:
LED - Red/Green/Blue
ECCN:
EAR99
Checking for live stock

This is manufactured by Newhaven Display Intl. The manufacturer part number is NHD-0216K3Z-NS(RGB)-FBW-V3. Its character size is 5.23mm h x 3.00mm w. It is assigned with possible HTSUS value of 8531.20.0020. The product is rohs3 compliant. It has a given 5 x 8 dots character format. It has a typical 16 x 2 display format. The product has -20°c ~ 70°c operating temperature range. The product has integrated with a pic16f693, a versatile and functional controller. In addition, it is reach unaffected. A bespoke product is i²c, rs-232, spi interface. It is shipped in bulk package . Provides a 64.50mm l x 16.40mm w viewing area. Its typical moisture sensitivity level is not applicable. The text is provided in red/green/blue colour. It has a long 16 weeks standard lead time. The product has a classic black background colour. It features a remarkable fstn - film super-twisted nematic display. Consists of 32 characters. Outline Specifications include in (L x W x H) - 80.00mm x 36.00mm x 13.50mm. It has optimum voltage supply of 4.7v ~ 5.5v. Moreover, it corresponds to nhd-0216, a base product number of the product. Typically has a transmissive display mode. Has a dot size of 0.56mm w x 0.61mm h. Backlight Options - led - red/green/blue. The product is designated with the ear99 code number.

pdf icon
NHD-0216K3Z-NS(RGB)-FBW-V3 31/May/2022(PCN Design/Specification)
pdf icon
NHD-0216K3Z-NS(RGB)-FBW-V3(Datasheets)
pdf icon
LCD Solvent Precautions(Other Related Documents)
pdf icon
LCD Safe Handling Procedure(Other Related Documents)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NHD-0216K3Z-NS(RGB)-FBW-V3 on website for other similar products.
We accept all major payment methods for all products including ET10955835. Please check your shopping cart at the time of order.
You can order Newhaven Display Intl brand products with NHD-0216K3Z-NS(RGB)-FBW-V3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Display Modules - LCD, OLED Character and Numeric category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Newhaven Display Intl NHD-0216K3Z-NS(RGB)-FBW-V3. You can also check on our website or by contacting our customer support team for further order details on Newhaven Display Intl NHD-0216K3Z-NS(RGB)-FBW-V3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10955835 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Newhaven Display Intl" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10955835.
Yes. We ship NHD-0216K3Z-NS(RGB)-FBW-V3 Internationally to many countries around the world.
