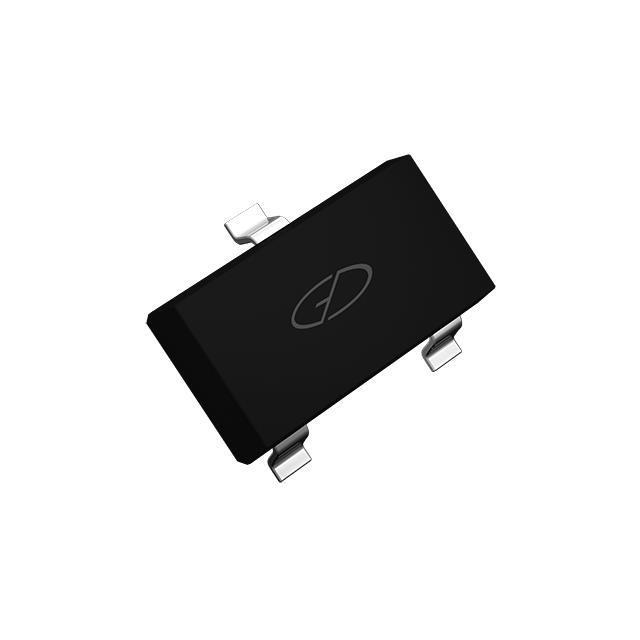

Good-Ark Semiconductor BAW56
Product Information
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-236-3, SC-59, SOT-23-3
Diode Configuration:
1 Pair Common Anode
Operating Temperature - Junction:
150°C
REACH Status:
REACH Unaffected
Reverse Recovery Time (trr):
6 ns
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
1.25 V @ 150 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
70 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
200mA
standardLeadTime:
16 Weeks
Current - Reverse Leakage @ Vr:
2.5 µA @ 70 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23
Technology:
Standard
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search BAW56 on website for other similar products.
We accept all major payment methods for all products including ET24709435. Please check your shopping cart at the time of order.
You can order Good-Ark Semiconductor brand products with BAW56 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diode Arrays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Good-Ark Semiconductor BAW56. You can also check on our website or by contacting our customer support team for further order details on Good-Ark Semiconductor BAW56.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24709435 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Good-Ark Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24709435.
Yes. We ship BAW56 Internationally to many countries around the world.
This is manufactured by Good-Ark Semiconductor. The manufacturer part number is BAW56. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-236-3, sc-59, sot-23-3. The diode features a 1 pair common anode configuration. The product operate at temperatures ranging from 150°c. In addition, it is reach unaffected. It has a trr (reverse recovery time) of 6 ns. It has a robust speed of small signal =< 200ma (io), any speed. The product has a maximum forward voltage of 1.25 v @ 150 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 70 v. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 200ma. It has a long 16 weeks standard lead time. 2.5 µa @ 70 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. sot-23 is the supplier device package value. This product use standard technology. The product is designated with the ear99 code number.
