Diotec Semiconductor BAT54SW
Product Information
Reverse Recovery Time (trr):
5 ns
HTSUS:
8541.10.0070
RoHS Status:
Not applicable
Package / Case:

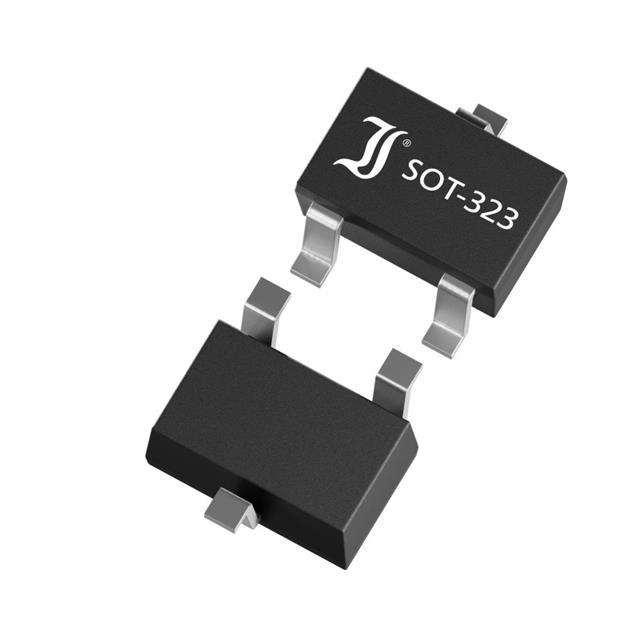

SC-70, SOT-323
Diode Configuration:
1 Pair Series Connection
edacadModel:
BAT54SW Models
Operating Temperature - Junction:
125°C (Max)
REACH Status:
Vendor Undefined
edacadModelUrl:
/en/models/13164072
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
650 mV @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
30 V
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Average Rectified (Io) (per Diode):
200mA
Current - Reverse Leakage @ Vr:
3 µA @ 30 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-323
Technology:
Schottky
Base Product Number:
BAT54
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search BAT54SW on website for other similar products.
We accept all major payment methods for all products including ET23167406. Please check your shopping cart at the time of order.
You can order Diotec Semiconductor brand products with BAT54SW directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diode Arrays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diotec Semiconductor BAT54SW. You can also check on our website or by contacting our customer support team for further order details on Diotec Semiconductor BAT54SW.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23167406 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Diotec Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23167406.
Yes. We ship BAT54SW Internationally to many countries around the world.
This is manufactured by Diotec Semiconductor. The manufacturer part number is BAT54SW. It has a trr (reverse recovery time) of 5 ns. It is assigned with possible HTSUS value of 8541.10.0070. The product is not applicable. Moreover, the product comes in sc-70, sot-323. The diode features a 1 pair series connection configuration. The product operate at temperatures ranging from 125°c (max). In addition, it is vendor undefined. It has a robust speed of small signal =< 200ma (io), any speed. The product has a maximum forward voltage of 650 mv @ 100 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 30 v. Its typical moisture sensitivity level is not applicable. The average rectified current at per diode is 200ma. 3 µa @ 30 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. sot-323 is the supplier device package value. This product use schottky technology. Moreover, it corresponds to bat54, a base product number of the product. The product is designated with the ear99 code number.
