Mounting Type:
Panel Mount
Diode Technology:
Silicon Junction
Peak Reverse Recovery Time:
50ns
Peak Non-Repetitive Forward Surge Current:
540A
Maximum Forward Voltage Drop:
2.3V
Maximum Continuous Forward Current:
60A
Rectifier Type:
Switching
Package Type:
SOT-227B
Number of Elements per Chip:
2
Diode Type:
Rectifier
Diode Configuration:
Isolated
Pin Count:
4
Peak Reverse Repetitive Voltage:
1000V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
SOT-227-4, miniBLOC
Diode Configuration:
2 Independent
Reverse Recovery Time (trr):
50 ns
Operating Temperature - Junction:
-40°C ~ 150°C
REACH Status:
REACH Unaffected
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
2.3 V @ 60 A
Package:
Tube
Voltage - DC Reverse (Vr) (Max):
1000 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
60A
standardLeadTime:
39 Weeks
Current - Reverse Leakage @ Vr:
3 mA @ 1000 V
Mounting Type:
Chassis Mount
Series:
FRED
Supplier Device Package:
SOT-227B
Technology:
Standard
Base Product Number:
DSEI2X61
ECCN:
EAR99

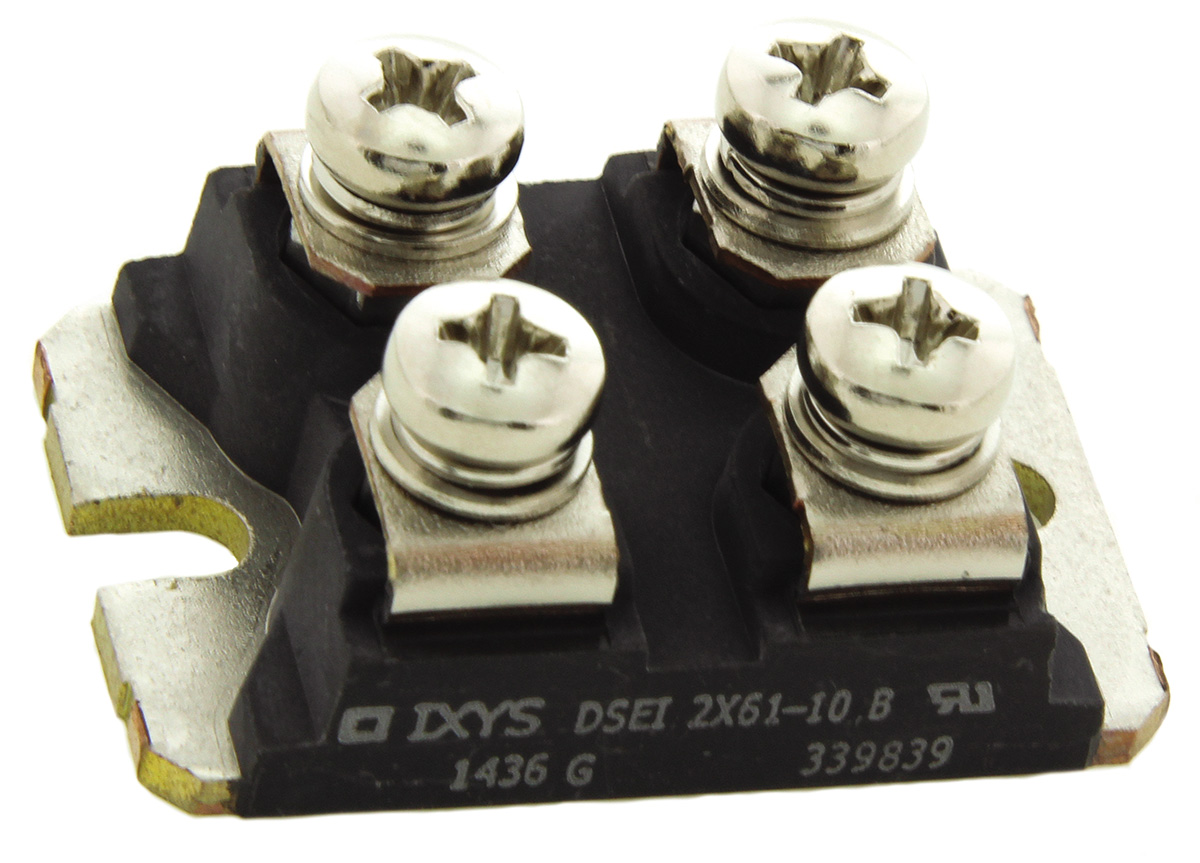

The IXYS DSEI2X61-10B Diode Array is a universal, high-geared power electronic component invented to manage demanding applications in various industries. This diode array combines cutting-edge technology and superior performance, making it a dependable option for engineers and designers. Its versatility makes it ideal for multiple industrial applications, including power supplies, motor control, and frequency converters. With its exceptional performance and reliability, the DSEI2X61-10B is a beneficial component for engineers and designers seeking efficient and powerful power solutions.
Prominent Benefits and Features of IXYS DSEI2X61-10B Include:
With its innovative design, the DSEI2X61-10B Diode Array offers superior electrical characteristics that contribute to its exceptional performance. It features a low forward voltage drop, ensuring efficient power conversion and minimal power losses. This attribute makes it suitable for applications where energy efficiency is crucial.
The diode array's high surge current capability is another standout feature. It can handle large transient currents without sacrificing performance, making it ideal for demanding applications with high peak currents. This attribute ensures the diode array's reliability and longevity even under challenging operating conditions.
The DSEI2X61-10B Diode Array also exhibits fast switching speeds, allowing for efficient and rapid power switching. This feature is particularly advantageous in applications where quick response times are essential, such as in power supplies, motor control, and frequency converters.
Designed for robustness, the diode array maintains excellent stability across various temperatures and voltages. This attribute ensures consistent performance and reliable operation, even in harsh environments where temperature fluctuations or voltage variations are prevalent.
Typical Applications of IXYS DSEI2X61-10B:
The versatility of the IXYS DSEI2X61-10B Diode Array finds applications in various settings. Some notable areas where this diode array excels include:
