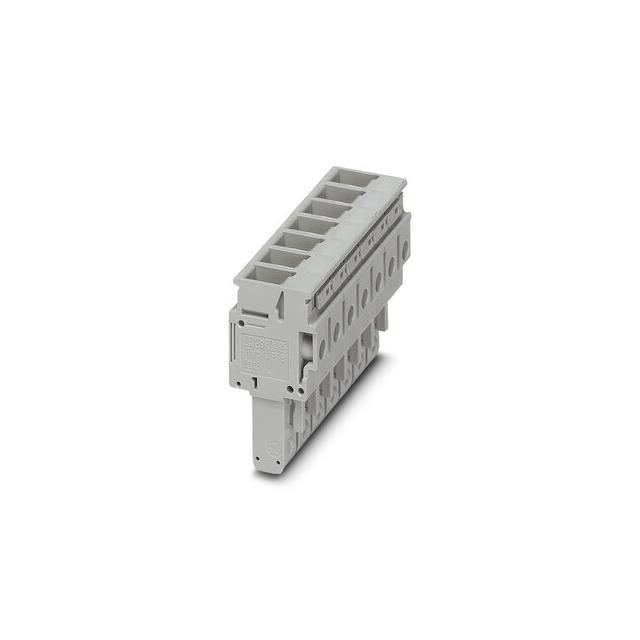

Phoenix Contact PCB Terminal Block, 7 Way/Pole, Screw Terminals, 0.2 → 6 mm², Polyamide, 1 kV
Product Information
Number of Contacts:
7
Current Rating:
41A
Voltage Rating:
1 kV
Series:
UP 6/ 7
Colour:
Grey
Material:
Polyamide
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Pitch:
5.2 mm
Wire Size:
0.2 → 6 mm²
HTSUS:
8536.90.4000
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-60°C ~ 105°C
Screw Size:
M3
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
7
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-6mm²
Plug Wire Entry:
180°
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Current - IEC:
41A
Wire Gauge or Range - AWG:
8-24 AWG
Voltage - UL:
600 V
Torque - Screw:
0.6-0.8 Nm (5.3-7.1 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
-
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
CLIPLINE COMBI UP
Positions Per Level:
7
Header Orientation:
-
Current - UL:
40 A
Pitch:
0.323" (8.20mm)
Number of Levels:
1
ECCN:
EAR99
Contact Material:
-
Checking for live stock
FAQs
Yes. You can also search 3060678 on website for other similar products.
We accept all major payment methods for all products including ET14156374. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3060678 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Terminal Accessories category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact PCB Terminal Block, 7 Way/Pole, Screw Terminals, 0.2 → 6 mm², Polyamide, 1 kV. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact PCB Terminal Block, 7 Way/Pole, Screw Terminals, 0.2 → 6 mm², Polyamide, 1 kV.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14156374 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14156374.
Yes. We ship 3060678 Internationally to many countries around the world.
This is PCB Terminal Block 7 Way/Pole Screw Terminals 0.2 → 6 mm² Polyamide 1 kV manufactured by Phoenix Contact. The manufacturer part number is 3060678. The product contains 7 contacts. The product has a current rating of 41a. Moreover, the product has a nominal 1 kv voltage rating. The product up 6/ 7, is a highly preferred choice for users. It has a decent grey colour. The product is made from highly stable and reliable polyamide. It allows screw termination method. Moreover, the product is 5.2 mm. Concerning wire's size, it is 0.2 → 6 mm². It is assigned with possible HTSUS value of 8536.90.4000. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -60°c ~ 105°c operating temperature range. It is available in screw size of m3. The typical length of the wire strip is 10mm. It comes in plug, female sockets configuration. The product carries possible position value of 7. A 0.2-6mm² of wire gauge. It also a 180° plug wire entry. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . An IEC current of 41a. While 8-24 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 0.6-0.8 nm (5.3-7.1 lb-in). It has a long 7 weeks standard lead time. The nominal voltage of the product is 1 kv. The product is available in free hanging (in-line) configuration. It has a classic gray colour. The product clipline combi up, is a highly preferred choice for users. It has 7 positions each level. The typical current includes 40 a. Moreover, the product is 0.323" (8.20mm). The product carries 1 levels. The product is designated with the ear99 code number.
