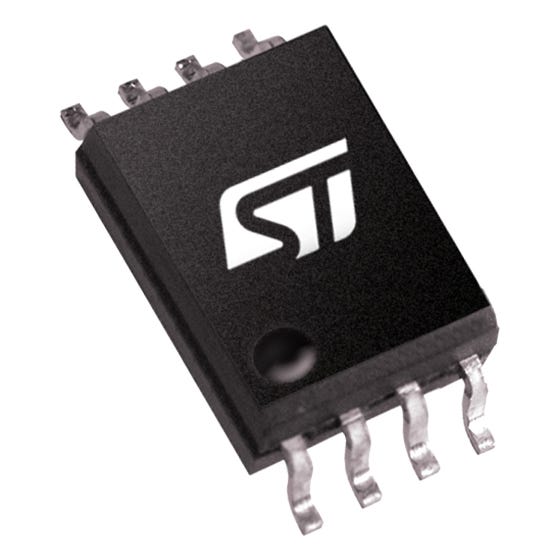

STMicroelectronics UC2843BD1013TR
Product Information
Synchronous Rectifier:
No
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
8-SOIC
Operating Temperature:
-25°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
7.6V ~ 30V
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Function:
Step-Up, Step-Up/Step-Down
Frequency - Switching:
Up to 500kHz
REACH Status:
REACH Unaffected
Output Type:
Transistor Driver
edacadModel:
UC2843BD1013TR Models
edacadModelUrl:
/en/models/1657337
Output Phases:
1
Topology:
Boost, Flyback
Control Features:
Frequency Control
Package:
Tape & Reel (TR)
Clock Sync:
No
Duty Cycle (Max):
96%
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
14 Weeks
Mounting Type:
Surface Mount
Series:
-
Serial Interfaces:
-
Base Product Number:
UC2843
Output Configuration:
Positive, Isolation Capable
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UC2843BD1013TR on website for other similar products.
We accept all major payment methods for all products including ET11162774. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with UC2843BD1013TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC DC Switching Controllers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics UC2843BD1013TR. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics UC2843BD1013TR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11162774 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11162774.
Yes. We ship UC2843BD1013TR Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is UC2843BD1013TR. This also includes no synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 8-soic is the supplier device package value. The product has -25°c ~ 85°c (ta) operating temperature range. The supply voltage of a bespoke product includes 7.6v ~ 30v. Moreover, the product comes in 8-soic (0.154", 3.90mm width). It performs basic function of step-up, step-up/step-down. The switching frequency of the standard product is up to 500khz. In addition, it is reach unaffected. Furthermore, it has atransistor driver output. Features 1 output phases. Topology includes boost, flyback. Possible control features include frequency control. It is shipped in tape & reel (tr) package . Clock Sync Info: no. It features a maximum duty cycle of 96%. Its typical moisture sensitivity level is 3 (168 hours). It has a long 14 weeks standard lead time. The product is available in surface mount configuration. Moreover, it corresponds to uc2843, a base product number of the product. It boasts positive, isolation capable output configuration. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
