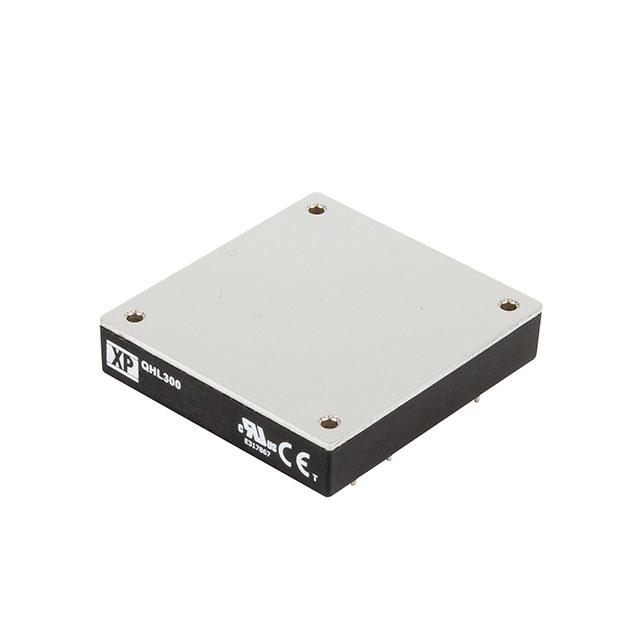

XP Power QHL300300S12

QHL300300S12 XP Power
QHL300300S12
XP Power

Product Information

Number of Outputs:
1
Load Regulation:
0.002
Isolation Voltage:
3kV ac
Efficiency:
88%
Mounting Type:
Through Hole
Package:
Brick
Maximum Temperature:
+100°C
Series:
QHL300
Input Voltage Range:
180 → 425 V dc
Length:
61mm
Railway Approved:
No
Width:
57.9mm
Depth:
12.7mm
Output Voltage:
12V dc
Medical Approved:
No
Minimum Temperature:
-40°C
Input Voltage Nominal:
300 V dc
Power Rating:
300W
Output Current:
25A
Base Product Number:
QHL300300
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
Half Brick
Power (Watts):
300 W
Current - Output (Max):
25A
Approval Agency:
CE, cURus
Package / Case:
Half Brick
Voltage - Input (Min):
180V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 1:
12V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
88%
Voltage - Input (Max):
425V
Control Features:
Enable, Active High
Package:
Tray
Size / Dimension:
2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
standardLeadTime:
18 Weeks
Voltage - Isolation:
3 kV
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Baseplate, Remote On/Off
Mounting Type:
Through Hole
Series:
QHL300 (300W)
Operating Temperature:
-40°C ~ 100°C (With Derating)
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by XP Power. The manufacturer part number is QHL300300S12. Additionally, the product is supplied with 1 outputs. Load Regulation - 0.002. It has 3kv ac isolation voltage. It is a highly efficient product with an 88% of high efficiency. The product is available in through hole configuration. It is shipped in brick package . The product has +100°c maximum temperature. The product qhl300, is a highly preferred choice for users. It has 180 → 425 v dc of input voltage range. Its accurate length is 61mm. The product is railway approved no . Furthermore, the product is 57.9mm wide. The product comes in 12.7mm depth. Features a 12v dc output voltage. Medical Approval - no. While its minimum temperature is -40°c. It has 300 v dc of nominal input voltage. Feature 300w of power rating. It carries 25a output current. Moreover, it corresponds to qhl300300, a base product number of the product. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. half brick is the supplier device package value. The product features power and watts of 300 w. The maximum product's output current is 25a. It is approved by ce, curus. Moreover, the product comes in half brick. It offers 180v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial). It has a 12v output voltage. Its maximum input voltage is 425v. Possible control features include enable, active high. It is shipped in tray package . The product's diameters include 2.40" l x 2.28" w x 0.50" h (61.0mm x 57.9mm x 12.7mm). It has a long 18 weeks standard lead time. 3 kv of isolation voltage. Its typical moisture sensitivity level is not applicable. The splendid features of the product include adjustable output, baseplate, remote on/off. The product qhl300 (300w), is a highly preferred choice for users. The product has -40°c ~ 100°c (with derating) operating temperature range. Standard number include: 62368-1. The product is designated with the ear99 code number.
