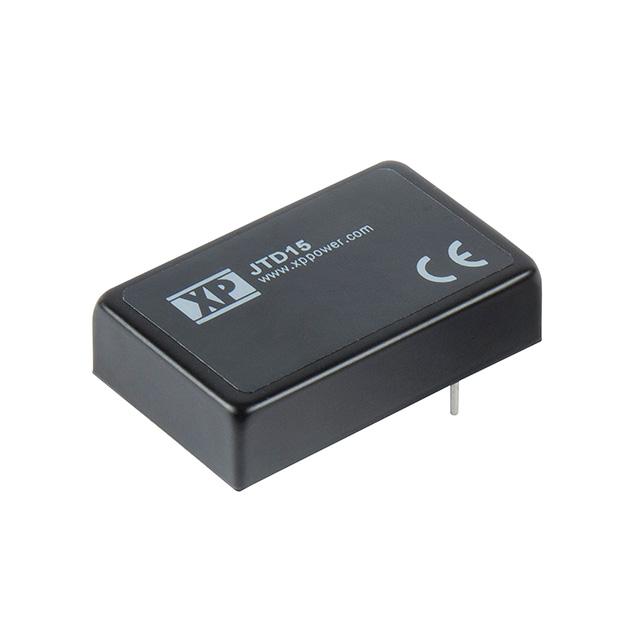

XP Power JTD1524S3V3
Product Information
Isolation Voltage:
1600 (Minimum)V dc
Minimum Temperature:
-40°C
Width:
25.4mm
Maximum Temperature:
+100°C
Protection Features:
Over Voltage Protection, Overload Protection, Short Circuit Protection
Maximum Input Current:
25 (No Load) mA, 515 (Full Load) mA
Current Limiting Method:
Hiccup Current Limiting
Load Regulation:
0.5%
Efficiency:
80%
Output Voltage:
3.3V dc
Output Current:
3A
Number of Outputs:
1
Output Voltage Adjustment Range:
±10 (Minimum)%
Line Regulation:
±0.5%
Ripple And Noise:
75mV Pk-Pk
Length:
40.64mm
Power Signal Conversion Type:
DC-DC
Weight:
19g
Mounting Type:
Through Hole
Series:
JTD15
Input Voltage Range:
9 → 36 V dc
Depth:
10.4mm
MTBF:
370 (Minimum)kh
Input Voltage Nominal:
24 V dc
Power Rating:
15W
Base Product Number:
JTD1524
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
6-DIP
Power (Watts):
15 W
Current - Output (Max):
3A
Package / Case:
6-DIP Module
Voltage - Input (Min):
9V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 1:
3.3V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
80%
Voltage - Input (Max):
36V
Package:
Tube
Size / Dimension:
1.60" L x 1.00" W x 0.41" H (40.6mm x 25.4mm x 10.4mm)
standardLeadTime:
22 Weeks
Voltage - Isolation:
3 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Remote On/Off, OCP, OVP, SCP
Mounting Type:
Through Hole
Series:
JTD15 (15W)
Operating Temperature:
-40°C ~ 100°C (With Derating)
Standard Number:
62368-1
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search JTD1524S3V3 on website for other similar products.
We accept all major payment methods for all products including ET14774847. Please check your shopping cart at the time of order.
You can order XP Power brand products with JTD1524S3V3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of XP Power JTD1524S3V3. You can also check on our website or by contacting our customer support team for further order details on XP Power JTD1524S3V3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14774847 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "XP Power" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14774847.
Yes. We ship JTD1524S3V3 Internationally to many countries around the world.
This is manufactured by XP Power. The manufacturer part number is JTD1524S3V3. It has 1600 (minimum)v dc isolation voltage. While its minimum temperature is -40°c. Furthermore, the product is 25.4mm wide. The product has +100°c maximum temperature. It provides robust protection features, such as over voltage protection, overload protection, short circuit protection. While its maximum input current includes 25 (no load) ma, 515 (full load) ma. It has a hiccup current limiting current limiting method . Load Regulation - 0.5%. It is a highly efficient product with an 80% of high efficiency. Features a 3.3v dc output voltage. It carries 3a output current. Additionally, the product is supplied with 1 outputs. It has ±10 (minimum)% of output voltage adjustment range. Has a line regulation of ±0.5%. Carries 75mv pk-pk ripple and noise. Its accurate length is 40.64mm. In addition, it has dc-dc type power signal conversion . The typical product's weight is 19g. The product is available in through hole configuration. The product jtd15, is a highly preferred choice for users. It has 9 → 36 v dc of input voltage range. The product comes in 10.4mm depth. The MTBF values include 370 (minimum)kh. It has 24 v dc of nominal input voltage. Feature 15w of power rating. Moreover, it corresponds to jtd1524, a base product number of the product. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. 6-dip is the supplier device package value. The product features power and watts of 15 w. The maximum product's output current is 3a. Moreover, the product comes in 6-dip module. It offers 9v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial). It has a 3.3v output voltage. Its maximum input voltage is 36v. It is shipped in tube package . The product's diameters include 1.60" l x 1.00" w x 0.41" h (40.6mm x 25.4mm x 10.4mm). It has a long 22 weeks standard lead time. 3 kv of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include remote on/off, ocp, ovp, scp. The product jtd15 (15w), is a highly preferred choice for users. The product has -40°c ~ 100°c (with derating) operating temperature range. Standard number include: 62368-1. The product is designated with the ear99 code number.
