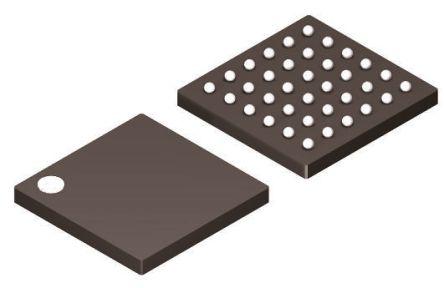

Panasonic AN30235A-PL, Dual Step-Down/Up DC-DC Converter, 850mA, Adjustable, 4.5 → 6 V, 4.8 → 7 V, WLCSP
Product Information
Number of Outputs:
2
Converter Type:
Step Down, Step Up
Load Regulation:
82.5 mV, 105 mV
Dimensions:
3.16 x 3.06 x 0.625mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Maximum Switching Frequency:
1.2 MHz
Output Type:
Adjustable
Height:
0.625mm
Width:
3.06mm
Length:
3.16mm
Maximum Input Voltage:
8.4 V
Package Type:
WLCSP
Maximum Output Voltage:
7 V
Minimum Operating Temperature:
-20 °C
Minimum Output Voltage:
4.5 V
Minimum Input Voltage:
4 V
Maximum Output Current:
850mA
Pin Count:
36
Line Regulation:
82.5 mV, 105 mV
Checking for live stock
FAQs
Yes. You can also search AN30235A-PL on website for other similar products.
We accept all major payment methods for all products including ET14099163. Please check your shopping cart at the time of order.
You can order Panasonic brand products with AN30235A-PL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic AN30235A-PL, Dual Step-Down/Up DC-DC Converter, 850mA, Adjustable, 4.5 → 6 V, 4.8 → 7 V, WLCSP. You can also check on our website or by contacting our customer support team for further order details on Panasonic AN30235A-PL, Dual Step-Down/Up DC-DC Converter, 850mA, Adjustable, 4.5 → 6 V, 4.8 → 7 V, WLCSP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14099163 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14099163.
Yes. We ship AN30235A-PL Internationally to many countries around the world.
This is Dual Step-Down/Up DC-DC Converter 850mA Adjustable 4.5 → 6 V 4.8 → 7 V WLCSP manufactured by Panasonic. The manufacturer part number is AN30235A-PL. Additionally, the product is supplied with 2 outputs. It is designed with standard step down, step up type converter . Load Regulation - 82.5 mv, 105 mv. The given dimensions of the product include 3.16 x 3.06 x 0.625mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. It has a maximum 1.2 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.625mm. Furthermore, the product is 3.06mm wide. Its accurate length is 3.16mm. 8.4 v is the maximum voltage of the bespoke product. The package is a sort of wlcsp. Its output voltage (maximum) includes 7 v. Whereas, the minimum operating temperature of the product is -20 °c. The product features 4.5 v minimum output voltage. The product has 4 v of minimum input voltage. Featuring 850ma of maximum output current. It contains 36 pins. Has a line regulation of 82.5 mv, 105 mv.
