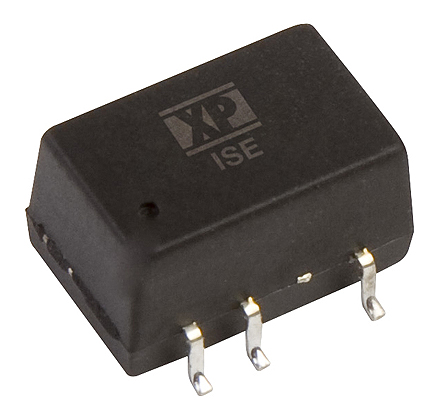

XP Power ISE2409A-H
Product Information
Number of Outputs:
1
Isolation Voltage:
3kV dc
Efficiency:
80%
Mounting Type:
Surface Mount
Package:
SMD
Maximum Temperature:
+105°C
Series:
ISE
Input Voltage Range:
21.6 → 26.4 V dc
Length:
12.7mm
Isolated:
Yes
Width:
8.3mm
Depth:
7mm
Output Voltage:
9V dc
Minimum Temperature:
-40°C
Input Voltage Nominal:
24 V dc
Power Rating:
1W
Output Current:
111mA
Standards Met:
EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
HTSUS:
8504.40.9580
Number of Outputs:
1
Supplier Device Package:
-
Power (Watts):
1 W
Current - Output (Max):
111mA
Approval Agency:
-
Package / Case:
8-SMD Module, 5 Leads
Voltage - Input (Min):
21.6V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 1:
9V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
80%
Voltage - Input (Max):
26.4V
Control Features:
-
Package:
Tube
Size / Dimension:
0.50" L x 0.33" W x 0.28" H (12.7mm x 8.3mm x 7.0mm)
Voltage - Isolation:
3 kV
Features:
SCP
Mounting Type:
Surface Mount
Series:
ISE (1W)
Operating Temperature:
-40°C ~ 105°C (With Derating)
Standard Number:
61000
Base Product Number:
ISE2409
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ISE2409A-H on website for other similar products.
We accept all major payment methods for all products including ET12870084. Please check your shopping cart at the time of order.
You can order XP Power brand products with ISE2409A-H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of XP Power ISE2409A-H. You can also check on our website or by contacting our customer support team for further order details on XP Power ISE2409A-H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12870084 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "XP Power" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12870084.
Yes. We ship ISE2409A-H Internationally to many countries around the world.
This is manufactured by XP Power. The manufacturer part number is ISE2409A-H. Additionally, the product is supplied with 1 outputs. It has 3kv dc isolation voltage. It is a highly efficient product with an 80% of high efficiency. The product is available in surface mount configuration. It is shipped in smd package . The product has +105°c maximum temperature. The product ise, is a highly preferred choice for users. It has 21.6 → 26.4 v dc of input voltage range. Its accurate length is 12.7mm. Isolated options - yes. Furthermore, the product is 8.3mm wide. The product comes in 7mm depth. Features a 9v dc output voltage. While its minimum temperature is -40°c. It has 24 v dc of nominal input voltage. Feature 1w of power rating. It carries 111ma output current. The product complies with all safety standards, such as en 55022, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-4-8, mil-hdbk-217f. It is assigned with possible HTSUS value of 8504.40.9580. The product features power and watts of 1 w. The maximum product's output current is 111ma. Moreover, the product comes in 8-smd module, 5 leads. It offers 21.6v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial). It has a 9v output voltage. Its maximum input voltage is 26.4v. It is shipped in tube package . The product's diameters include 0.50" l x 0.33" w x 0.28" h (12.7mm x 8.3mm x 7.0mm). 3 kv of isolation voltage. The splendid features of the product include scp. The product ise (1w), is a highly preferred choice for users. The product has -40°c ~ 105°c (with derating) operating temperature range. Standard number include: 61000. Moreover, it corresponds to ise2409, a base product number of the product. The product is designated with the ear99 code number.
