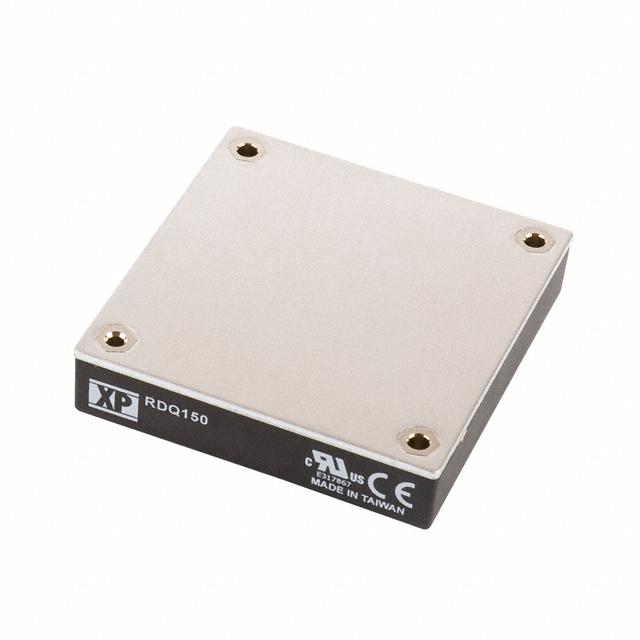

XP Power RDQ150110S24
Product Information
Number of Outputs:
1
Load Regulation:
±0.2%
Isolation Voltage:
2.25kV dc
Standards Met:
CE Certified, cULus Recognized, EN 50155, EN 55011, EN 55022, EN 61373, EN50121-3-2, EN60068-2-1, EN60068-2-2, EN60068-2-30, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, UL 60950-1
Mounting Type:
Through Hole
Package:
Half Brick
Maximum Temperature:
+100°C
Series:
RDQ
Input Voltage Range:
66 → 160 V dc
Length:
57.9mm
Railway Approved:
Yes
Isolated:
Yes
Width:
61mm
Depth:
12.7mm
Output Voltage:
24V dc
Medical Approved:
No
Minimum Temperature:
-40°C
Input Voltage Nominal:
110 V dc
Power Rating:
150W
Output Current:
6.5A
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Power (Watts):
150 W
Current - Output (Max):
6.5A
Package / Case:
9-DIP Module
Voltage - Input (Min):
66V
Type:
Isolated Module
Applications:
ITE (Commercial), Railway
Voltage - Output 1:
24V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
91%
Voltage - Input (Max):
160V
Control Features:
Enable, Active High
Package:
Bulk
Size / Dimension:
2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
standardLeadTime:
27 Weeks
Voltage - Isolation:
2.25 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Remote On/Off, OTP, OVP, SCP, UVLO
Mounting Type:
Through Hole
Series:
RDQ (150W)
Operating Temperature:
-40°C ~ 100°C
Base Product Number:
RDQ150110
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search RDQ150110S24 on website for other similar products.
We accept all major payment methods for all products including ET11858740. Please check your shopping cart at the time of order.
You can order XP Power brand products with RDQ150110S24 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of XP Power RDQ150110S24. You can also check on our website or by contacting our customer support team for further order details on XP Power RDQ150110S24.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11858740 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "XP Power" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11858740.
Yes. We ship RDQ150110S24 Internationally to many countries around the world.
This is manufactured by XP Power. The manufacturer part number is RDQ150110S24. Additionally, the product is supplied with 1 outputs. Load Regulation - ±0.2%. It has 2.25kv dc isolation voltage. The product complies with all safety standards, such as ce certified, culus recognized, en 50155, en 55011, en 55022, en 61373, en50121-3-2, en60068-2-1, en60068-2-2, en60068-2-30, en61000-4-2, en61000-4-3, en61000-4-4, en61000-4-5, en61000-4-6, ul 60950-1. The product is available in through hole configuration. It is shipped in half brick package . The product has +100°c maximum temperature. The product rdq, is a highly preferred choice for users. It has 66 → 160 v dc of input voltage range. Its accurate length is 57.9mm. The product is railway approved yes . Isolated options - yes. Furthermore, the product is 61mm wide. The product comes in 12.7mm depth. Features a 24v dc output voltage. Medical Approval - no. While its minimum temperature is -40°c. It has 110 v dc of nominal input voltage. Feature 150w of power rating. It carries 6.5a output current. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The product features power and watts of 150 w. The maximum product's output current is 6.5a. Moreover, the product comes in 9-dip module. It offers 66v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial), railway. It has a 24v output voltage. It is a highly efficient product with an 91% of high efficiency. Its maximum input voltage is 160v. Possible control features include enable, active high. It is shipped in bulk package . The product's diameters include 2.40" l x 2.28" w x 0.50" h (61.0mm x 57.9mm x 12.7mm). It has a long 27 weeks standard lead time. 2.25 kv of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include remote on/off, otp, ovp, scp, uvlo. The product rdq (150w), is a highly preferred choice for users. The product has -40°c ~ 100°c operating temperature range. Moreover, it corresponds to rdq150110, a base product number of the product. The product is designated with the ear99 code number.
