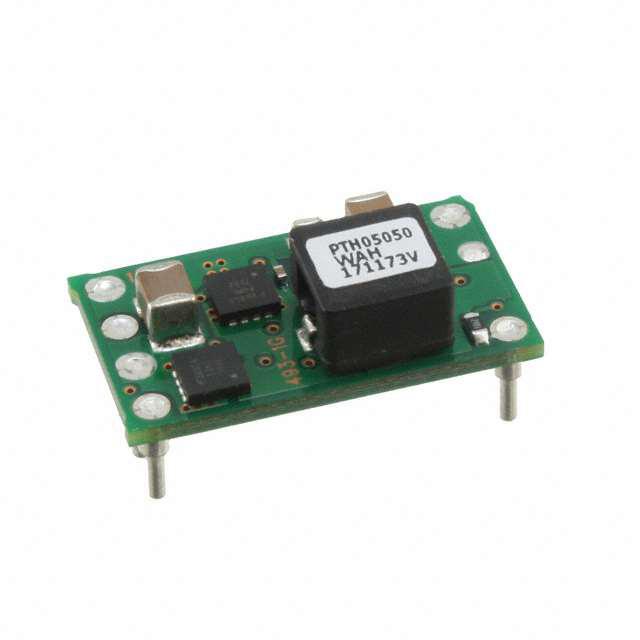

Texas Instruments PTH05050WAH
Product Information
Number of Outputs:
1
Load Regulation:
±12 mV
Dimensions:
22.1 x 12.57 x 8.25mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+85 °C
Height:
8.25mm
Width:
12.57mm
Length:
22.1mm
Package Type:
DIP Module
Minimum Operating Temperature:
-40 °C
Maximum Switching Frequency:
650 kHz
Maximum Output Current:
6A
Pin Count:
6
Line Regulation:
±10 mV
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
0.8 ~ 3.6V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
6A
Package / Case:
6-DIP Module
Voltage - Input (Min):
4.5V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
PTH05050WAH Models
Efficiency:
95%
Voltage - Input (Max):
5.5V
edacadModelUrl:
/en/models/810308
Package:
Tray
Size / Dimension:
0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
standardLeadTime:
6 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
UVLO
Mounting Type:
Through Hole
Series:
PTH05050W
Base Product Number:
PTH05050
Number of Outputs:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PTH05050WAH on website for other similar products.
We accept all major payment methods for all products including ET11075733. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with PTH05050WAH directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DC-DC Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments PTH05050WAH. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments PTH05050WAH.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11075733 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11075733.
Yes. We ship PTH05050WAH Internationally to many countries around the world.
This is manufactured by Texas Instruments. The manufacturer part number is PTH05050WAH. Additionally, the product is supplied with 1 outputs. Load Regulation - ±12 mv. The given dimensions of the product include 22.1 x 12.57 x 8.25mm. The product is available in through hole configuration. It has a maximum operating temperature of +85 °c. In addition, the height is 8.25mm. Furthermore, the product is 12.57mm wide. Its accurate length is 22.1mm. The package is a sort of dip module. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum 650 khz switching frequency. Featuring 6a of maximum output current. It contains 6 pins. Has a line regulation of ±10 mv. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. It has a 0.8 ~ 3.6v output voltage. The product has -40°c ~ 85°c operating temperature range. The maximum product's output current is 6a. Moreover, the product comes in 6-dip module. It offers 4.5v of minimum input voltage. It comes in non-isolated pol module configuration. The product is widely employed in ite (commercial). In addition, it is reach unaffected. It is a highly efficient product with an 95% of high efficiency. Its maximum input voltage is 5.5v. It is shipped in tray package . The product's diameters include 0.87" l x 0.50" w x 0.34" h (22.1mm x 12.7mm x 8.6mm). It has a long 6 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The splendid features of the product include uvlo. The product pth05050w, is a highly preferred choice for users. Moreover, it corresponds to pth05050, a base product number of the product. The product is designated with the ear99 code number.
