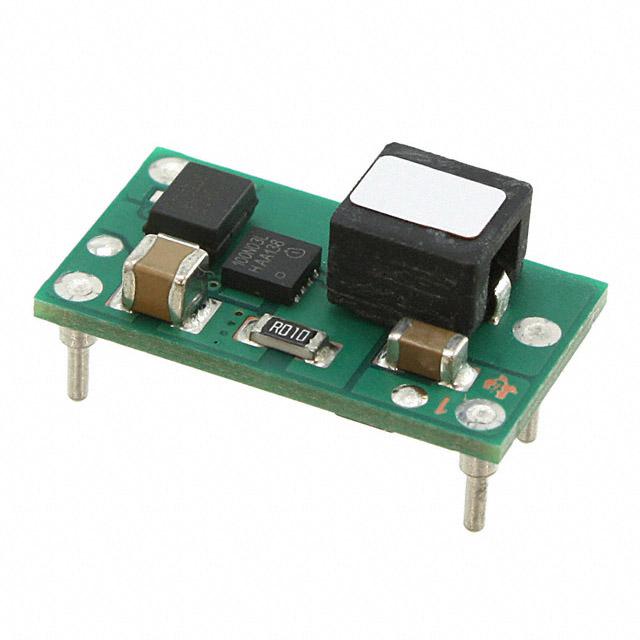

Texas Instruments PTN04050CAD

PTN04050CAD Texas Instruments
PTN04050CAD
PTN04050CAD
ET10853000
Texas Instruments

Product Information

The PTN04050CAD is an adaptable, non-isolated PoL module DC-DC converter offered by Texas Instruments, capable of outputting 5 to 15V at 2.4A, with an input range of 2.95V to 5.5V, making it highly suited for a wide range of electronic applications.

Number of Outputs:
1
Load Regulation:
±10 mV
Dimensions:
18.92 x 12.57 x 8.25mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+85 °C
Maximum Switching Frequency:
600 Khz
Height:
8.25mm
Width:
12.57mm
Length:
18.92mm
Maximum Input Voltage:
5.5 V
Package Type:
DIP Module
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
2.95 V
Maximum Output Current:
2.4A
Pin Count:
4
Line Regulation:
±10 mV
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
5 ~ 15V
Operating Temperature:
-40°C ~ 85°C
Current - Output (Max):
2.4A
Package / Case:
4-DIP Module
Voltage - Input (Min):
2.95V
Type:
Non-Isolated PoL Module
Applications:
ITE (Commercial)
REACH Status:
REACH Unaffected
Voltage - Output 2:
-
Voltage - Output 3:
-
edacadModel:
PTN04050CAD Models
Efficiency:
90%
Voltage - Input (Max):
5.5V
edacadModelUrl:
/en/models/864519
Package:
Tray
Size / Dimension:
0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
standardLeadTime:
6 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
PTN04050C (12W)
Base Product Number:
PTN04050
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The PTN04050CAD manufactured by Texas Instruments is a high-performance, non-isolated DC-DC converter module for various power applications. With its compact size and advanced features, this module offers efficient power conversion and dependable performance. Its packed size, reliability, and versatility make it a preferred choice for industrial, automotive, and telecom applications, delivering efficient power conversion and improving the overall system performance.

Key Features of Texas Instruments PTN04050CAD Include:

  • High Efficiency: The PTN04050CAD module provides excellent efficiency, helping to minimize power losses and optimize power usage in applications. This feature is especially beneficial for devices that operate on battery power or in energy-conscious systems.
  • Wide Input Voltage Range: The module accepts a wide input voltage range, typically from 9V to 36V, making it suitable for a variety of applications where input voltage levels may vary.
  • Output Voltage Flexibility: It offers a programmable output voltage, allowing users to select a desired voltage level according to their application requirements. This feature enhances its versatility and makes it compatible with a wide range of devices.
  • Thermal Protection: The PTN04050CAD module incorporates thermal shutdown protection, which prevents damage due to excessive temperature. This feature ensures the module's safety and longevity under varying operating conditions.

Versatile Applications of Texas Instruments PTN04050CAD:

  • Industrial Applications: The PTN04050CAD module finds extensive usage in industrial systems such as factory automation, robotics, and control systems. Its reliable power conversion capabilities make it suitable for powering sensors, actuators, and other critical components.
  • Automotive Electronics: The automotive industry requires efficient and compact power solutions, and the PTN04050CAD serves this purpose well. It can be utilized in electric vehicles, infotainment systems, advanced driver-assistance systems (ADAS), and various automotive electronics.
  • Telecom and Networking: The module's wide input voltage range and high efficiency make it appropriate for telecom and networking applications. It can effectively power network switches, routers, base stations, and other communication equipment.

Benefits of Using Texas Instruments PTN04050CAD:

  • Space-saving Solution: With its compact size and integrated design, the PTN04050 CAD module saves valuable board space in power-constrained applications. Its compact construction makes it excellent for space-sensitive designs.
  • Reliable Performance: Texas Instruments is known for its high-quality products, and the PTN04050CAD is no exception. It delivers stable and consistent power conversion, ensuring reliable performance even in demanding environments.
  • Design Simplicity: The module's ready-to-use design simplifies the system design process. It eliminates the need for complex circuitry and minimizes the component count, saving time and effort during development.
