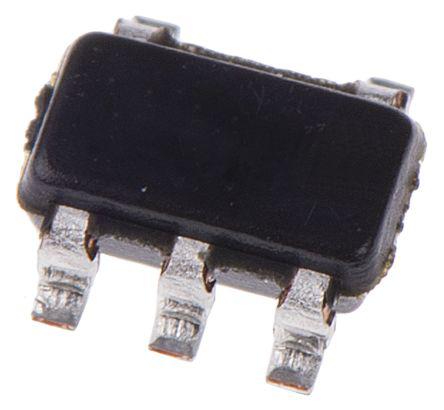

CAT5118TBI-50GT3, Digital Potentiometer 50kΩ 32-Position Linear Serial-2 Wire 5-Pin SOT-23

CAT5118TBI-50GT3 , Digital Potentiometer 50kΩ 32-Position Linear Serial-2 Wire 5-Pin SOT-23
CAT5118TBI-50GT3
ON Semiconductor

Product Information

Number of Positions:
32
Maximum Operating Temperature:
+85 °C
Dimensions:
2.9 x 1.6 x 1.3mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Resistance Value:
50kΩ
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
1.3mm
Width:
1.6mm
Length:
2.9mm
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Control Interface:
Serial-2 Wire
Taper Type:
Linear
Pin Count:
5
Number of Pots per Package:
1
Memory Type:
Volatile
Resistance (Ohms):
50k
Number of Taps:
32
Mounting Type:
Surface Mount
Taper:
Linear
Number of Circuits:
1
Detailed Description:
Digital Potentiometer 50k Ohm 1 Circuit 32 Taps Up/Down (U/D, CS) Interface
Packaging:
Tape & Reel (TR)
Base Part Number:
CAT5118
Operating Temperature:
-40°C ~ 85°C
Resistance - Wiper (Ohms) (Typ):
200
Voltage - Supply:
2.7V ~ 5.5V
Customer Reference:
Package / Case:
SC-74A, SOT-753
Interface:
Up/Down (U/D, CS)
Temperature Coefficient (Typ):
200ppm/°C
Configuration:
Rheostat
Tolerance:
±20%
Manufacturer:
ON Semiconductor
RoHs Compliant
Checking for live stock

This is Digital Potentiometer 50kΩ 32-Position Linear Serial-2 Wire 5-Pin SOT-23 manufactured by ON Semiconductor. The manufacturer part number is CAT5118TBI-50GT3. The product carries possible position value of 32. It has a maximum operating temperature of +85 °c. The given dimensions of the product include 2.9 x 1.6 x 1.3mm. The product is available in surface mount configuration. It is a type of single power supply. Its resistance value is 50kω . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 1.3mm. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is -40 °c. It incorporates a serial-2 wire control interface. In addition, it has a linear type taper . It contains 5 pins. It contains 1 pots per package . It is a type of volatile memory type. Moreover, the given resistance of the product is 50k. It contains 32 taps. It features a linear taper. It integrates 1 circuits. It features digital potentiometer 50k ohm 1 circuit 32 taps up/down (u/d, cs) interface. In addition, tape & reel (tr) is the available packaging type of the product. Base Part Number: cat5118. The product has -40°c ~ 85°c operating temperature range. The product features a typical resistance of 200. It has optimum voltage supply of 2.7v ~ 5.5v. Moreover, the product comes in sc-74a, sot-753. A bespoke product is up/down (u/d, cs) interface. The typical temperature coefficient of 200ppm/°c. The product is available in rheostat configuration. It features ±20% of tolerance value. The on semiconductor's product offers user-desired applications.

pdf icon
Datasheet(Technical Reference)
pdf icon
Mult Devices 28/Apr/2017(PCN Obsolescence/ EOL)
pdf icon
Mult Dev EOL 29/Jan/2021(PCN Obsolescence/ EOL)
pdf icon
CAT5110,18,19,23-25(Datasheets)
pdf icon
CAT5110,18-19,23-25(Datasheets)
pdf icon
Mult Devices 29/Aug/2018(PCN Packaging)
