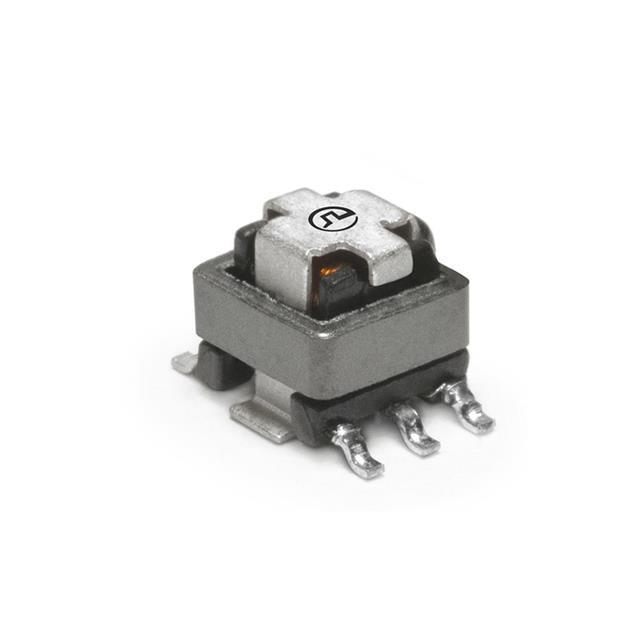

Pulse Electronics PA1005.020NL
Product Information
Ratings:
-
Frequency Range:
20kHz ~ 1MHz
Current Ratio:
-
HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Type:
Invasive
DC Resistance (DCR):
0.75mOhm Primary, 550mOhm Secondary Max
Height - Seated (Max):
0.217" (5.50mm)
REACH Status:
REACH Unaffected
edacadModel:
PA1005.020NL Models
Inductance:
80 µH
edacadModelUrl:
/en/models/16511092
Package:
Tray
ET (Volt-Time):
-
Size / Dimension:
-
Turns Ratio - Primary:Secondary:
1:20
standardLeadTime:
14 Weeks
Current Rating (Amps):
20 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
-
Series:
PA1005.XXXNL
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PA1005.020NL on website for other similar products.
We accept all major payment methods for all products including ET23548123. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with PA1005.020NL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Current Sense Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics PA1005.020NL. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics PA1005.020NL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23548123 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23548123.
Yes. We ship PA1005.020NL Internationally to many countries around the world.
This is manufactured by Pulse Electronics. The manufacturer part number is PA1005.020NL. The frequency range includes 20khz ~ 1mhz. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. Moreover, it has gull wing terminal style. It comes in invasive configuration. It allows DC resistance of 0.75mohm primary, 550mohm secondary max. It has the maximum seated height of 0.217" (5.50mm). In addition, it is reach unaffected. The product has a 80 µh inductance value. It is shipped in tray package . The typical primary and secondary turn ratio is 1:20. It has a long 14 weeks standard lead time. Additionally, the product's output is 20 a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product pa1005.xxxnl, is a highly preferred choice for users. The product is designated with the ear99 code number.
