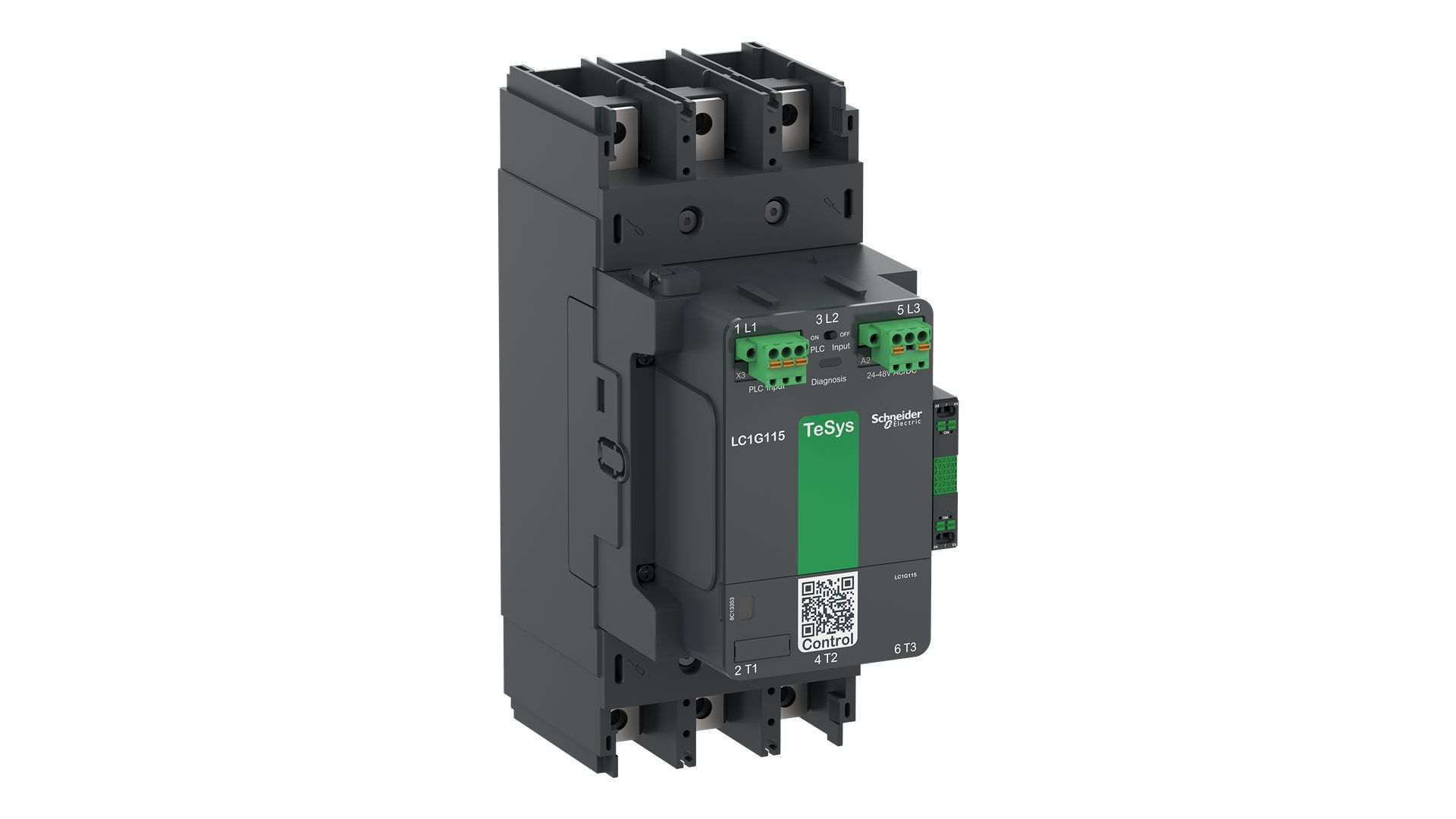

Contactor Application:
Motor Control, Power Switching
Coil Voltage:
24/48 V ac/dc
Pole and Throw Configuration:
3P
Width:
108 mm
Contact Current:
275A
Control Circuit Voltage Uc:
48 V
Operational Current Ie:
150A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-25°C
Length:
255mm
Standards/Approvals:
IEC 60068-2-30, CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, EN/ISO 13849-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60529, IEC 60695-2-1, IEC 60947, IEC 60947-1 Annex Q, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40:Annex JJ, UL 60947-4-1, UL 94
Number of Auxiliary Contacts:
2
Contact Voltage:
1000V
Series:
LC1G
Depth:
193mm
Normal State Configuration:
3 NO
Auxiliary Contact Configuration:
1 NO/1 NC
Power Rating:
90kW
Number of Poles:
3
Coil Voltage:
24 ~ 48VAC/DC
Termination Style:
Box Lug
Operating Temperature:
-25°C ~ 60°C
Coil Resistance:
-
Switching Voltage:
1000VAC, 460VDC - Max
Coil Power:
-
Must Operate Voltage:
-
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
70 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
150 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount
Series:
TeSys
Release Time:
50 ms
Packaging:
Box
Contact Material:
-
