Coil Voltage:
230VAC
Termination Style:
Screw Terminal
Operating Temperature:
-5°C ~ 40°C
Coil Resistance:
-
title:

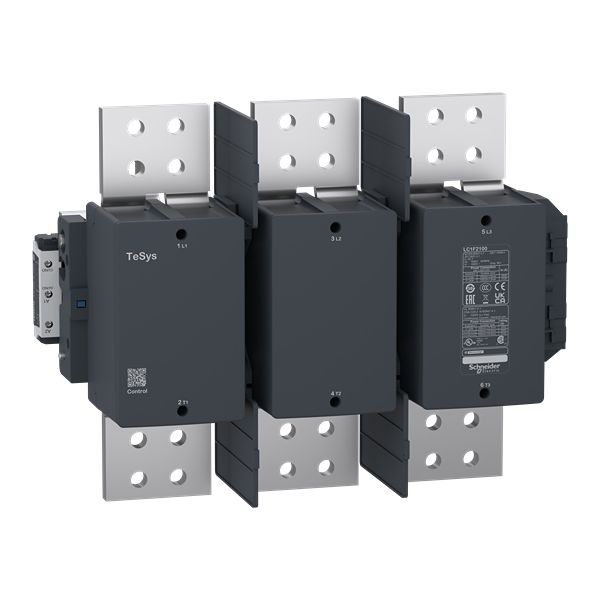

LC1F2100P7
Coil Power:
-
Must Operate Voltage:
195.5 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
75 ms
Must Release Voltage:
69 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
2100 A
Features:
-
Mounting Type:
Chassis Mount
Series:
TeSys
Switching Voltage:
1000VAC, 460VDC - Max
Release Time:
170 ms
Packaging:
Box
Contact Material:
-
Function:
AC
Contactor Application:
Resistive Load
Maximum Operating Temperature:
40°C
Pole and Throw Configuration:
3
Series:
LC1F
Minimum Operating Temperature:
-5°C
Coil Voltage:
230 V
Length:
332mm
Operational Current Ie:
2100A
Width:
438 mm
Depth:
238.6mm
Contact Current:
2.1kA
Control Circuit Voltage Uc:
230 V
Normal State Configuration:
3 NO
Standards/Approvals:
CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, EN/ISO 13849-1, IEC 60068-2-30, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60529, UL 60335-2-40:Annex JJ, UL 60947-4-1, UL 94, IEC 60695-2-1, IEC 60947, IEC 60947-1 Annex Q, IEC 60947-4-1, IEC 60947-5-1
Contact Voltage:
230V
Power Rating:
2200VA
Product Type:
Contactor
Number of Poles:
3
Terminal Type:
Screw Clamp
