HTSUS:
8536.49.0065
RoHS Status:
ROHS3 Compliant
Coil Voltage:
220 ~ 240VAC/DC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 60°C
Coil Resistance:
-
Switching Voltage:
1000VAC - Max
Coil Power:
700W
REACH Status:
REACH Unaffected
Must Operate Voltage:
-
Package:
Box
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
95 ms
Must Release Voltage:
-
standardLeadTime:
2 Weeks
Contact Rating (Current):
265 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
SIRIUS
Release Time:
80 ms
ECCN:
EAR99
Base Product Number:
3RT1265
Contact Material:
-
Coil Voltage:
220/240 V
Width:
145 mm
Contact Current:
265A
Control Circuit Voltage Uc:
240 V
Operational Current Ie:
330300A

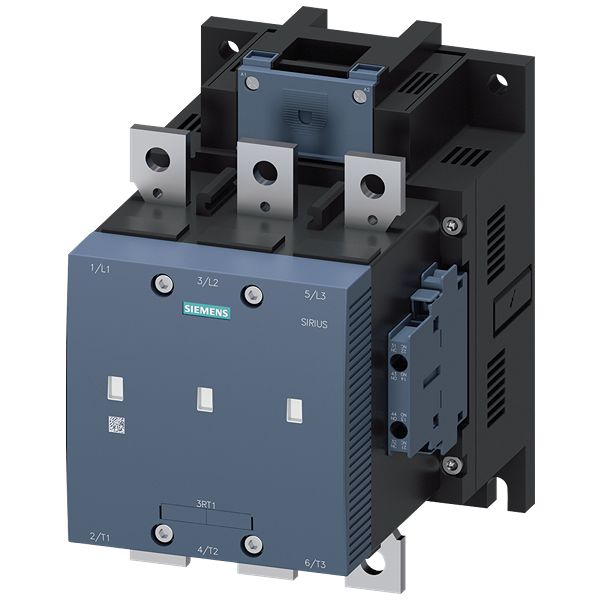

Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Minimum Operating Temperature:
-25°C
Length:
210mm
Standards/Approvals:
IEC 60529, CCC, CE, EAC, EN 62061, EN ISO 13849-1, EN ISO 13849-2, IEC 60068-2-30, IEC 60204-1, IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, IEC 61508, IEC 61508-2, IEC 81346-2, SN 31920, UKCA, UL
Number of Auxiliary Contacts:
4
Contact Voltage:
1kV
Mount Type:
Surface
Series:
3RT12
Depth:
206mm
Normal State Configuration:
2 NO/2 NC
Auxiliary Contact Configuration:
2 NO/2 NC
Power Rating:
355kW
Number of Poles:
3
