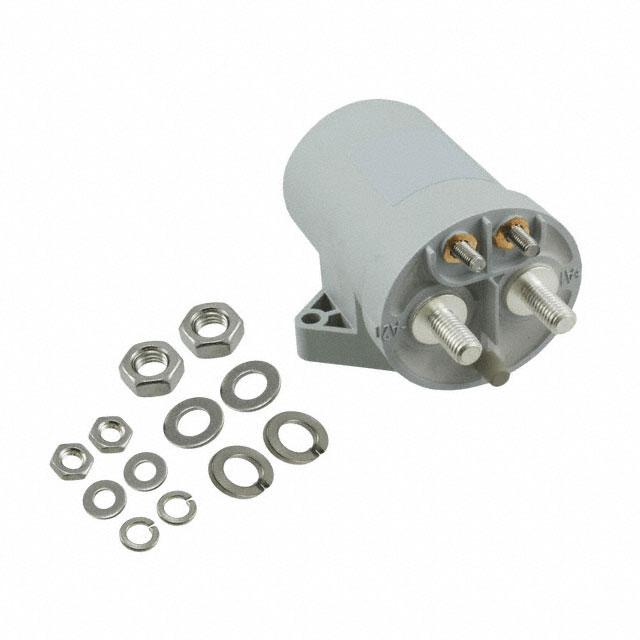

TE Connectivity Aerospace, Defense and Marine LEV200A5NAF

LEV200A5NAF TE Connectivity Aerospace, Defense and Marine
TE Connectivity Aerospace, Defense and Marine

Product Information

HTSUS:
8536.41.0045
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Stud
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
40Ohms
Coil Current:
600 mA
Switching Voltage:
900VDC - Max
Coil Power:
-
REACH Status:
REACH Unaffected
Must Operate Voltage:
19 VDC
Manufacturer:
TE Connectivity Aerospace, Defense and Marine
Contact Form:
SPST-NO (DM) (1 Form X)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
25 ms
Must Release Voltage:
5 VDC
standardLeadTime:
33 Weeks
Contact Rating (Current):
500 A
Features:
Sealed - Hermetically
Mounting Type:
Chassis Mount
Series:
LEV200, KILOVAC
Release Time:
12 ms
Packaging:
Bulk
ECCN:
EAR99
Base Product Number:
LEV200
Contact Material:
-
Checking for live stock

This is manufactured by TE Connectivity Aerospace, Defense and Marine. The manufacturer part number is LEV200A5NAF. It is assigned with possible HTSUS value of 8536.41.0045. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has stud terminal style. The product has -40°c ~ 85°c operating temperature range. It holds up to 40ohms coil resistance. It has a coil current of 600 ma. The product's switching voltage is 900vdc - max. In addition, it is reach unaffected. On the other hand, 19 vdc is the given crucial/must operating voltage. The te connectivity aerospace, defense and marine's product offers user-desired applications. It also has a spst-no (dm) (1 form x) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 25 ms. While the must release voltage is a 5 vdc. It has a long 33 weeks standard lead time. It has a contact current rating of 500 a. The splendid features of the product include sealed - hermetically. The product is available in chassis mount configuration. The product lev200, kilovac, is a highly preferred choice for users. While 12 ms is its release time. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. Moreover, it corresponds to lev200, a base product number of the product.
