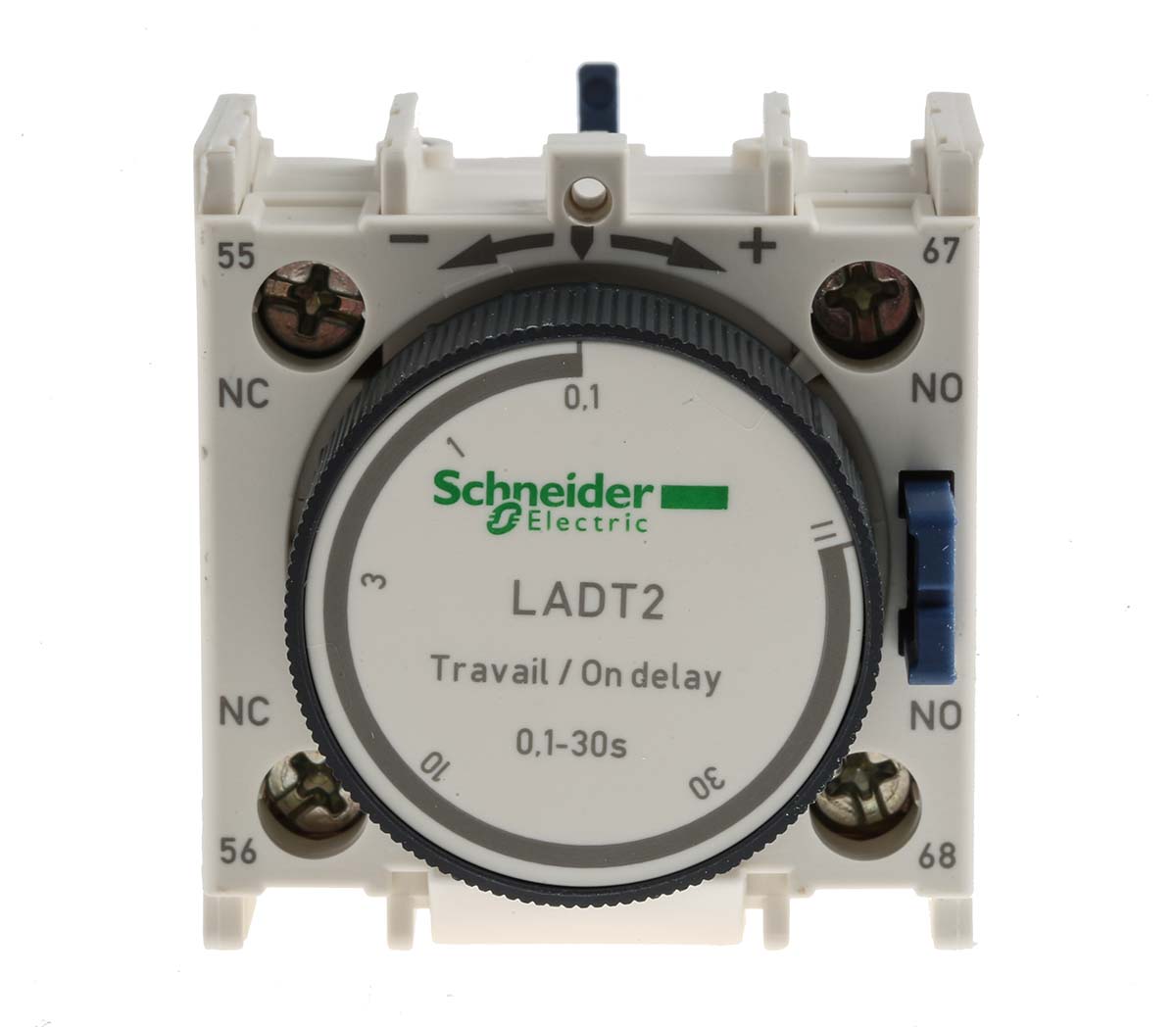

TeSys D Series Analogue (ON Delay) Pneumatic Timer, Range 0.1 → 30s, NO/NC Contacts

Enrgtech Part No: ET13942531
|
Manufacturer Part No:
LADT2
|
Manufacturer: Schneider Electric

LADT2 TeSys D Series Analogue (ON Delay) Pneumatic Timer, Range 0.1 → 30s, NO/NC Contacts

Product Information

Better World Verification:

Green Premium

Timer Range:

1 → 30s

Current Rating:

10 A

Mounting Type:

Front Mount

Voltage Rating:

690 V

Series:

Accessory Type:

Pneumatic Timer

Contact Configuration:

1NO + 1NC

Range:

TeSys

Better World Product:

Yes

For Use With:

TeSys D, TeSys Deca, TeSys F

Timer Function:

Analogue (ON Delay)

Checking for live stock

The Schneider Electric LADT2 is an essential front-mount pneumatic timer designed to add a timed delay function to TeSys D, TeSys Deca, and TeSys F contactors. This device features an Analogue (ON Delay) function, allowing precise control over process timing within a range of 0.1 to 30 seconds. It incorporates a reliable pneumatic mechanism, high-capacity 1NO + 1NC contacts rated for 10A, and a nominal voltage up to 690V, ensuring robust performance in industrial control circuits for sequencing operations.

Why Choose the Schneider Electric LADT2 Pneumatic Timer? - The Benefits

This pneumatic timer provides highly accurate time-delayed control without external power for the timing element, simplifying installation. Its front-mount configuration allows quick, easy integration with compatible Schneider Electric TeSys contactors. The reliable pneumatic mechanism and broad voltage rating ensure dependable, long-life operation in industrial control panels.

Key Features & Suitable Environments of the LADT2 Timer

Front-mount design for quick attachment to contactors.
Analogue (ON Delay) timing function.
Adjustable time range of 0.1 to 30 seconds.
Features 1NO + 1NC contact configuration.
10A current rating and up to 690V voltage rating.
Green Premium certification for environmental compliance.

Suitable Environments: Industrial automation systems, motor control centers (MCCs), conveyor belts, and any electrical panels requiring sequential starting or delay in switching circuits.

Datasheet - LADT2(Technical Reference)

Line Drawing - LADT2(Technical Reference)

Product Environmental Profile(Technical Reference)

TeSys Contactor Accessories - References(Technical Reference)

General(Technical Reference)
