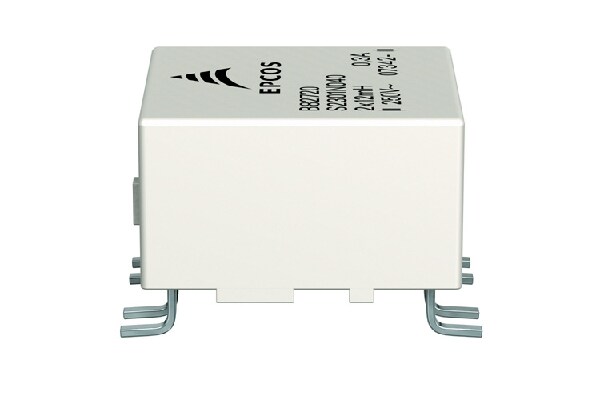

EPCOS 1.1 mH Common Mode Choke

B82720S2202N040 EPCOS 1.1 mH Common Mode Choke
B82720S2202N040 EPCOS 1.1 mH Common Mode Choke
EPCOS

Product Information

Automotive Standard:
No
Test Frequency:
50 Hz
Inductance Tolerance:
-30 to 50 %
Maximum DC Resistance:
65mΩ
Maximum DC Current:
2A
Series:
B82720S
Length:
15mm
Height:
10.8mm
Packaging:
Tape & Reel
Depth:
15mm
Standards/Approvals:
UL, VDE, RoHS
Core Material:
Ferrite
Inductance:
1.1 mH
Choke Voltage:
250 V
Impedance:
0.065Ω
Product Type:
Common Mode Choke
Maximum Operating Temperature:
40°C
Pin Count:
4
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is 1.1 mH Common Mode Choke manufactured by EPCOS. The manufacturer part number is B82720S2202N040. The product complies with automotive standard - no. It features a test frequency of 50 hz. It has a standard -30 to 50 % inductance tolerance . It allows up to 65mω maximum DC resistance. While it carries 2a of maximum DC current. The product b82720s, is a highly preferred choice for users. Its accurate length is 15mm. In addition, the height is 10.8mm. In addition, tape & reel is the available packaging type of the product. The product comes in 15mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 1.1 mh inductance value. It has an impedance value of 0.065ω. common mode choke is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 40°c. It contains 4 pins. It has a surface type mount .

pdf icon
Datasheet - B82720S2202N040(Technical Reference)
