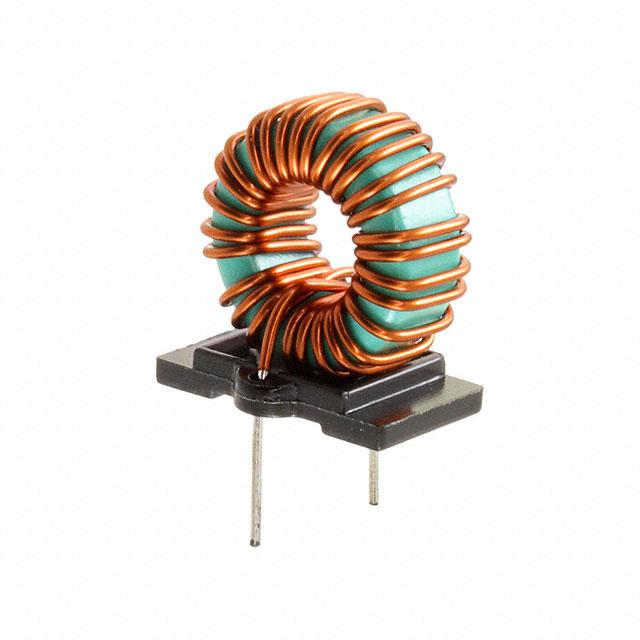

KEMET 26 μH Iron Leaded Inductor, 2A Idc, 42mΩ Rdc SN-JA
Product Information
Diameter:
18mm
Dimensions:
15 x 12 x 18mm
Lead Diameter:
0.6mm
Maximum DC Resistance:
42mΩ
Maximum DC Current:
2A
Series:
SN-JA
Minimum Operating Temperature:
-25°C
Length:
15mm
Height:
18mm
Depth:
12mm
Core Material:
Iron
Inductance:
26 μH
Mounting Type:
Through Hole
Lead Pitch:
10mm
Maximum Operating Temperature:
+105°C
Terminal Type:
Wire
Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
26 µH @ 100 kHz
Voltage Rating - DC:
-
Operating Temperature:
-25°C ~ 105°C
Approval Agency:
-
Package / Case:
Vertical, 2 PC Pin
Number of Lines:
2
Current Rating (Max):
2A
Height (Max):
0.709" (18.00mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
SN8S-300JA Models
edacadModelUrl:
/en/models/9955605
Package:
Bulk
Size / Dimension:
0.709" L x 0.472" W (18.00mm x 12.00mm)
Filter Type:
Power Line
standardLeadTime:
30 Weeks
DC Resistance (DCR) (Max):
42mOhm
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
SN
Base Product Number:
SN8S
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SN8S-300JA on website for other similar products.
We accept all major payment methods for all products including ET17496195. Please check your shopping cart at the time of order.
You can order KEMET brand products with SN8S-300JA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Common Mode Chokes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of KEMET 26 μH Iron Leaded Inductor, 2A Idc, 42mΩ Rdc SN-JA. You can also check on our website or by contacting our customer support team for further order details on KEMET 26 μH Iron Leaded Inductor, 2A Idc, 42mΩ Rdc SN-JA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17496195 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "KEMET" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17496195.
Yes. We ship SN8S-300JA Internationally to many countries around the world.
This is 26 μH Iron Leaded Inductor 2A Idc 42mΩ Rdc SN-JA manufactured by KEMET. The manufacturer part number is SN8S-300JA. Its diameter is 18mm. The given dimensions of the product include 15 x 12 x 18mm. Furthermore, the lead has 0.6mm diameter. It allows up to 42mω maximum DC resistance. While it carries 2a of maximum DC current. The product sn-ja, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 15mm. In addition, the height is 18mm. The product comes in 12mm depth. The core is manufactured from highly durable and reliable iron materials. The product has a 26 μh inductance value. The product is available in through hole configuration. The lead features 10mm pitch. It has a maximum operating temperature of +105°c. The terminal is a wire type. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. Typical inductance of 26 µh @ 100 khz. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in vertical, 2 pc pin. It is comprised of 2 lines. The maximum current rating is 2a. Additionally, the 0.709" (18.00mm) is the maximum height of the product. In addition, it is reach unaffected. It is shipped in bulk package . The product's diameters include 0.709" l x 0.472" w (18.00mm x 12.00mm). The filter is a power line type with excellent features. It has a long 30 weeks standard lead time. The product's maximum DC resistance is 42mohm. Its typical moisture sensitivity level is not applicable. The product sn, is a highly preferred choice for users. Moreover, it corresponds to sn8s, a base product number of the product. The product is designated with the ear99 code number.
