Normal Mode Choke 45.0uH 2.0A 0.0700R

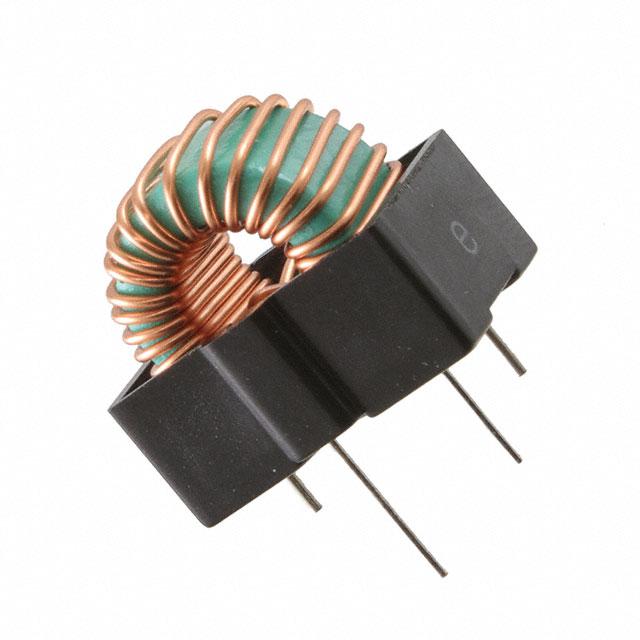

SN8D-300JB Normal Mode Choke 45.0uH 2.0A 0.0700R
SN8D-300JB
SN8D-300JB Normal Mode Choke 45.0uH 2.0A 0.0700R
KEMET

Product Information

Termination Style:
Wire
Automotive Standard:
No
Test Frequency:
0.1 MHz
Core Material:
Iron
Inductance:
45 μH
Product Type:
Common Mode Choke
Maximum Operating Temperature:
105°C
Lead Diameter:
0.6mm
Maximum DC Resistance:
70mΩ
Maximum DC Current:
2A
Length:
18.5mm
Standards/Approvals:
RoHS
Lead Pitch:
14mm
Mount Type:
Through Hole
Diameter:
0.6 mm
Series:
SN-JB
Depth:
15.5mm
Height:
18mm
Packaging:
Tray
Minimum Operating Temperature:
-25°C
Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
-
Operating Temperature:
-25°C ~ 105°C
Approval Agency:
-
Package / Case:
Horizontal, 4 PC Pin
Number of Lines:
2
Current Rating (Max):
2A
Height (Max):
0.854" (21.70mm)
title:
SN8D-300JB
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
SN8D-300JB Models
Inductance @ Frequency:
45 µH @ 100 kHz
edacadModelUrl:
/en/models/9955615
Manufacturer:
KEMET
Moisture Sensitivity Level (MSL):
Not Applicable
Filter Type:
Power Line
standardLeadTime:
25 Weeks
DC Resistance (DCR) (Max):
70mOhm
Features:
-
Mounting Type:
Through Hole
Series:
SN
Packaging:
Bulk
Base Product Number:
SN8D
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Normal Mode Choke 45.0uH 2.0A 0.0700R manufactured by KEMET. The manufacturer part number is SN8D-300JB. Moreover, it has wire terminal style. The product complies with automotive standard - no. It features a test frequency of 0.1 mhz. The core is manufactured from highly durable and reliable iron materials. The product has a 45 μh inductance value. common mode choke is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Furthermore, the lead has 0.6mm diameter. It allows up to 70mω maximum DC resistance. While it carries 2a of maximum DC current. Its accurate length is 18.5mm. The lead features 14mm pitch. It has a through hole type mount . Its diameter is 0.6 mm. The product sn-jb, is a highly preferred choice for users. The product comes in 15.5mm depth. In addition, the height is 18mm. In addition, tray is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -25°c. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in horizontal, 4 pc pin. It is comprised of 2 lines. The maximum current rating is 2a. Additionally, the 0.854" (21.70mm) is the maximum height of the product. In addition, it is reach unaffected. Typical inductance of 45 µh @ 100 khz. The kemet's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. The filter is a power line type with excellent features. It has a long 25 weeks standard lead time. The product's maximum DC resistance is 70mohm. The product is available in through hole configuration. The product sn, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to sn8d, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Specification sheet(Technical Reference)
pdf icon
SN-JB Series(Datasheets)
