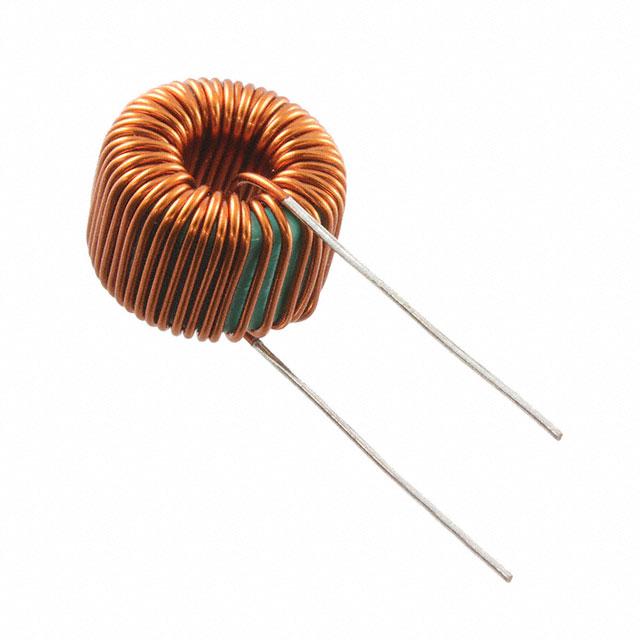

Normal Mode Choke 125.0uH 2.0A 0.1000R
Product Information
Diameter:
17mm
Dimensions:
17 (Dia.) x 13mm
Lead Diameter:
0.6mm
Maximum DC Resistance:
100mΩ
Maximum DC Current:
2A
Series:
SN
Minimum Operating Temperature:
-25°C
Depth:
13mm
Core Material:
Iron
Inductance:
125 μH
Mounting Type:
Through Hole
Lead Pitch:
10.5mm
Maximum Operating Temperature:
+105°C
Terminal Type:
Wire
Ratings:
-
HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
125 µH @ 100 kHz
Voltage Rating - DC:
-
Operating Temperature:
-25°C ~ 105°C
Approval Agency:
-
Package / Case:
Vertical, No Base, 2 PC Pin
Number of Lines:
2
Current Rating (Max):
2A
Height (Max):
0.728" (18.50mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
SN8D-500 Models
edacadModelUrl:
/en/models/9955571
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Filter Type:
Power Line
standardLeadTime:
30 Weeks
DC Resistance (DCR) (Max):
100mOhm
Features:
-
Mounting Type:
Through Hole
Series:
SN
Base Product Number:
SN8D
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SN8D-500 on website for other similar products.
We accept all major payment methods for all products including ET17493749. Please check your shopping cart at the time of order.
You can order KEMET brand products with SN8D-500 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Common Mode Chokes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Normal Mode Choke 125.0uH 2.0A 0.1000R. You can also check on our website or by contacting our customer support team for further order details on Normal Mode Choke 125.0uH 2.0A 0.1000R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17493749 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "KEMET" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17493749.
Yes. We ship SN8D-500 Internationally to many countries around the world.
This is Normal Mode Choke 125.0uH 2.0A 0.1000R manufactured by KEMET. The manufacturer part number is SN8D-500. Its diameter is 17mm. The given dimensions of the product include 17 (dia.) x 13mm. Furthermore, the lead has 0.6mm diameter. It allows up to 100mω maximum DC resistance. While it carries 2a of maximum DC current. The product sn, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. The product comes in 13mm depth. The core is manufactured from highly durable and reliable iron materials. The product has a 125 μh inductance value. The product is available in through hole configuration. The lead features 10.5mm pitch. It has a maximum operating temperature of +105°c. The terminal is a wire type. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. Typical inductance of 125 µh @ 100 khz. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in vertical, no base, 2 pc pin. It is comprised of 2 lines. The maximum current rating is 2a. Additionally, the 0.728" (18.50mm) is the maximum height of the product. In addition, it is reach unaffected. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. The filter is a power line type with excellent features. It has a long 30 weeks standard lead time. The product's maximum DC resistance is 100mohm. Moreover, it corresponds to sn8d, a base product number of the product. The product is designated with the ear99 code number.
