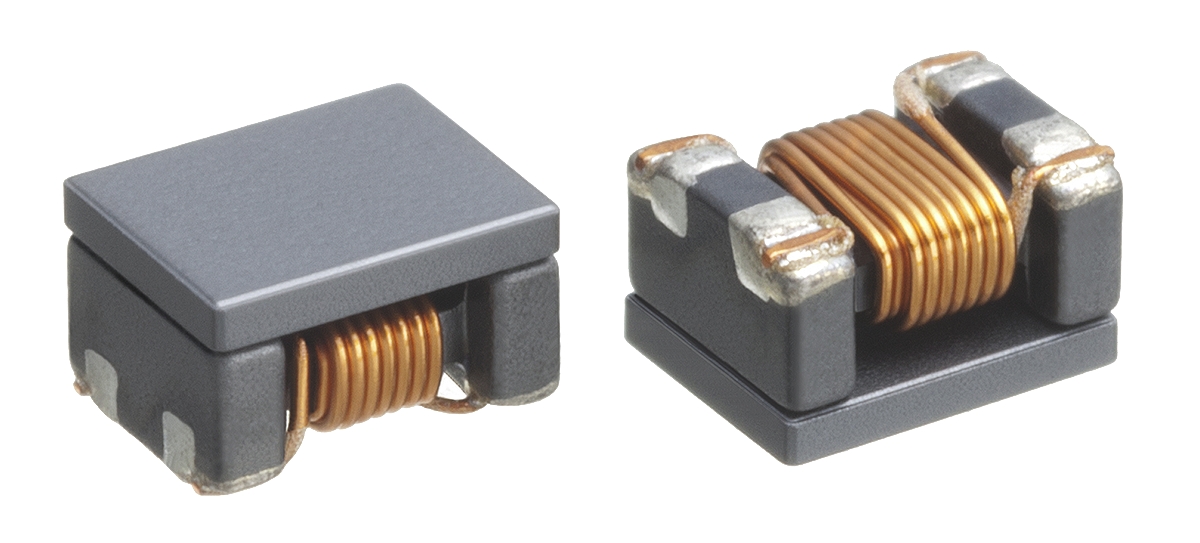

TDK ACP Series Type 3225 Shielded SMD Common Mode Line Filter Wire-Wound 1.5A Idc

Enrgtech Part No: ET14002143
|
Manufacturer Part No:
ACP3225-102-2P-T000
|
Manufacturer: TDK

ACP3225-102-2P-T000 TDK ACP Series Type 3225 Shielded SMD Common Mode Line Filter Wire-Wound 1.5A Idc

Product Information

Maximum Current:

1.5 A

Dimensions:

3.2 x 2.5 x 1.9mm

Mounting Type:

Surface Mount

Voltage Rating:

60V

Series:

ACP

Operating Temperature Range:

-40°C → +85°C

Termination Style:

Surface Mount

Length:

3.2mm

Height:

1.9mm

Test Frequency:

100 MHz

Depth:

2.5mm

Minimum Operating Temperature:

-40°C

Checking for live stock

The TDK ACP3225-102-2P-T000 is a high-performance, shielded SMD common mode line filter designed to provide exceptional noise suppression in compact electronic assemblies. Featuring a wire-wound construction, this dual-line component supports a maximum current of 1.5A and offers a substantial impedance of 1000 Ω at 100 MHz. Its surface-mount design and 3225 package size make it an ideal choice for high-density circuit boards requiring reliable electromagnetic interference (EMI) management and signal integrity.

Why Buy the Product?

This TDK ACP3225-102-2P-T000 common mode line filter ensures superior signal clarity by effectively filtering high-frequency noise while maintaining a compact footprint for modern electronics.

Reliable Noise Suppression: High impedance levels minimise unwanted common-mode noise across power and data lines.
Space-Saving Design: The 3225 SMD package allows for seamless integration into densely packed PCB layouts without sacrificing performance.

Special Features

High Current Capacity: Supports up to 1.5A IDC, making it suitable for various power-line applications.
Shielded Construction: Minimises magnetic leakage and external interference.
Low DC Resistance: Features a 50mΩ resistance to reduce power loss and heat generation.
Surface Mount Technology: Designed for efficient automated assembly processes.

Typical Environments

Automotive Electronics: Used in engine control units and infotainment systems.
Industrial Automation: Ideal for sensors and control circuits sensitive to EMI.
Telecommunications: Applied in high-speed data transmission equipment.
Consumer Electronics: Integrated into power adapters and mobile devices.
