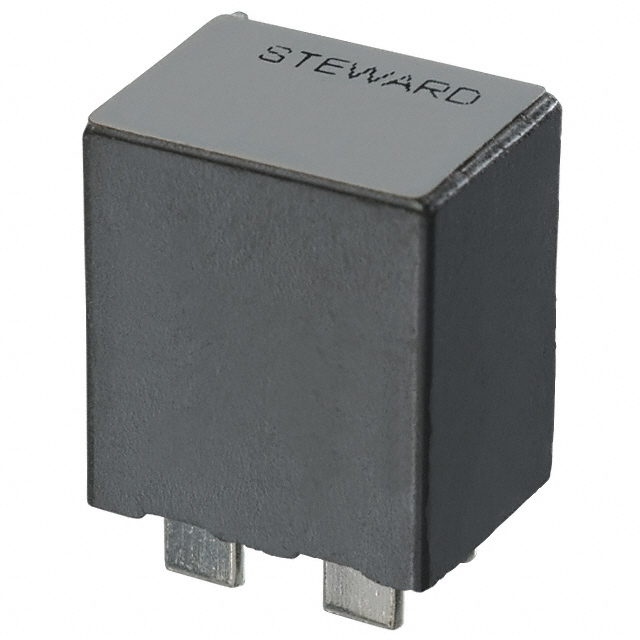

Laird-Signal Integrity Products CM5441Z161B-10

CM5441Z161B-10 Laird-Signal Integrity Products
CM5441Z161B-10
Laird-Signal Integrity Products

Product Information

Ratings:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
340V
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Vertical, 4 PC Pin
Number of Lines:
2
Current Rating (Max):
70A
Height (Max):
0.600" (15.24mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
CM5441Z161B-10 Models
edacadModelUrl:
/en/models/806591
Manufacturer:
Laird-Signal Integrity Products
Size / Dimension:
0.540" L x 0.410" W (13.72mm x 10.41mm)
Filter Type:
Power Line
standardLeadTime:
12 Weeks
DC Resistance (DCR) (Max):
0.3mOhm
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
CM5441
Packaging:
Tray
Impedance @ Frequency:
160 Ohms @ 100 MHz
ECCN:
EAR99
Checking for live stock

This is manufactured by Laird-Signal Integrity Products. The manufacturer part number is CM5441Z161B-10. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. 340v of DC voltage rating. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in vertical, 4 pc pin. It is comprised of 2 lines. The maximum current rating is 70a. Additionally, the 0.600" (15.24mm) is the maximum height of the product. In addition, it is reach unaffected. The laird-signal integrity products's product offers user-desired applications. The product's diameters include 0.540" l x 0.410" w (13.72mm x 10.41mm). The filter is a power line type with excellent features. It has a long 12 weeks standard lead time. The product's maximum DC resistance is 0.3mohm. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product cm5441, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has an impedance at given frequency values; 160 ohms @ 100 mhz. The product is designated with the ear99 code number.

pdf icon
CM Choke Rated Voltage(Environmental Information)
pdf icon
Part Number Guide(Part Numbering Guide)
pdf icon
EMI Filtering/RF Inductors Catalog(Datasheets)
pdf icon
CM5441Z161B-10 Drawing(Product Drawings)

Reviews

  • Be the first to review.

Enrgtech owes its success to the drive and determination of our team to ensure we meet and exceed the level of service or Laird-Signal Integrity Products CM5441Z161B-10 delivery that our customers have come to expect from us for the last 17 years. We delightedly bring you a Common Mode Chokes that get its name because they choke or block high-frequency signals while consenting to low-frequency signals to pass and are electromagnetic components that use direct current (DC) and alternating current (AC) to block high frequencies in a circuit.



We deal directly with some of the world's leading brands, such as Laird-Signal Integrity Products, and have access to Common Mode Chokes products, such as Laird-Signal Integrity Products CM5441Z161B-10, to name a few, and we recognise that each customer has unique requirements. That's why we personalize our service offering Laird-Signal Integrity Products CM5441Z161B-10 by taking the time to understand customer demands, the target products, and the value we can bring to help develop business together. Be sure to get in touch with us at your earliest convenience for additional assistance about CM5441Z161B-10 by emailing sales@enrgtech.co.uk or contacting us at +44 (0) 3303 800 157.
