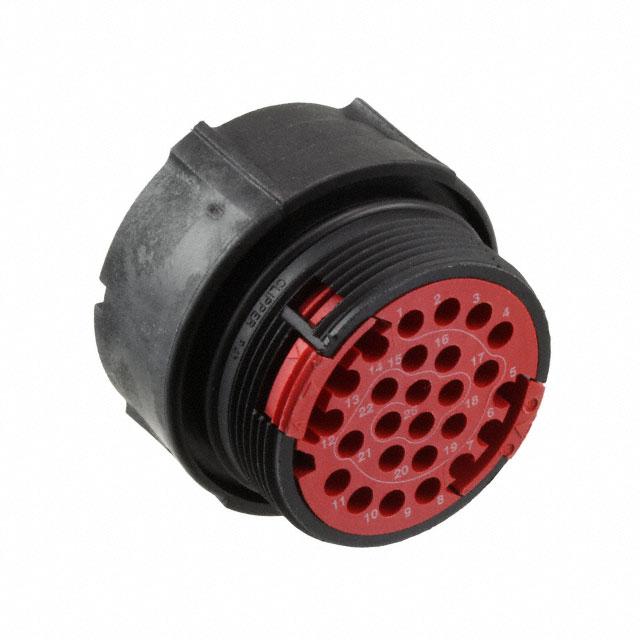

Souriau-Sunbank by Eaton, CL1F4101, Circular Connector Plug Housing, Thermoplastic, Halogen Free, Clipper Not Applicable
Product Information
The CL1F4101, Souriau-Sunbank, is an unshielded connector plug housing with a cable-mount configuration. The housing provides long-lasting performance due to its durable materials. It is a lightweight, cost-effective, and highly durable product, making it ideal for harsh conditions.
Number of Contacts:
26
Current Rating:
13.0A
Mating Type:
Threaded
Mounting Type:
Cable Mount
IP Rating:
IP67
Series:
Clipper
Body Orientation:
Straight
Termination Method:
Crimp
Contact Gender:
Female
Housing Material:
Thermoplastic
Plug/Socket:
Socket
Minimum Operating Temperature:
-40°C
Shell Size:
4
Strain Relief:
No
Maximum Operating Temperature:
+125°C
HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 125°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
26
Shielding:
Unshielded
Shell Material:
Thermoplastic, Halogen Free
REACH Status:
REACH Unaffected
Includes:
-
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Size:
16
Package:
Bulk
Shell Size - Insert:
4-1
Connector Type:
Plug Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp and Solder Cup
Fastening Type:
Twist Latch
standardLeadTime:
18 Weeks
Insert Material:
Thermoplastic
Orientation:
Keyed
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
Clipper
Base Product Number:
CL1F4
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CL1F4101 on website for other similar products.
We accept all major payment methods for all products including ET20398771. Please check your shopping cart at the time of order.
You can order Souriau-Sunbank by Eaton brand products with CL1F4101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Souriau-Sunbank by Eaton, CL1F4101, Circular Connector Plug Housing, Thermoplastic, Halogen Free, Clipper Not Applicable. You can also check on our website or by contacting our customer support team for further order details on Souriau-Sunbank by Eaton, CL1F4101, Circular Connector Plug Housing, Thermoplastic, Halogen Free, Clipper Not Applicable.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20398771 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Souriau-Sunbank by Eaton" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20398771.
Yes. We ship CL1F4101 Internationally to many countries around the world.
The product clipper is a highly preferred choice for users. It has a straight body orientation. It allows the crimp termination method. CL1F4101 is a circular connector plug housing manufactured by Souriau-Sunbank, now part of Eaton Corporation. This connector plug housing is designed to be used in a variety of applications, including aerospace, military, and industrial settings, where reliability and durability are critical. In this article, we will explore the features and benefits of the CL1F4101 circular connector plug housing by Souriau-Sunbank.
Design and Construction:
Electrical Performance:
The CL1F4101 circular connector plug housing provides excellent electrical performance, with a maximum operating voltage of 500 volts AC or DC. The connector plug housing is also rated for a maximum current of 5 amperes per contact, with a total current capacity of 95 amperes.
Environmental Performance:
The CL1F4101 circular connector plug housing is designed to withstand extreme environmental conditions, including high temperature, vibration, and shock. The housing is rated for operating temperatures of -65°C to 175°C, and it has been tested to withstand vibration levels of up to 50G and shock levels of up to 500G. The connector plug housing is also rated for IP67 protection, which means it is completely dustproof and waterproof, making it suitable for use in harsh outdoor environments.
Applications Information:
