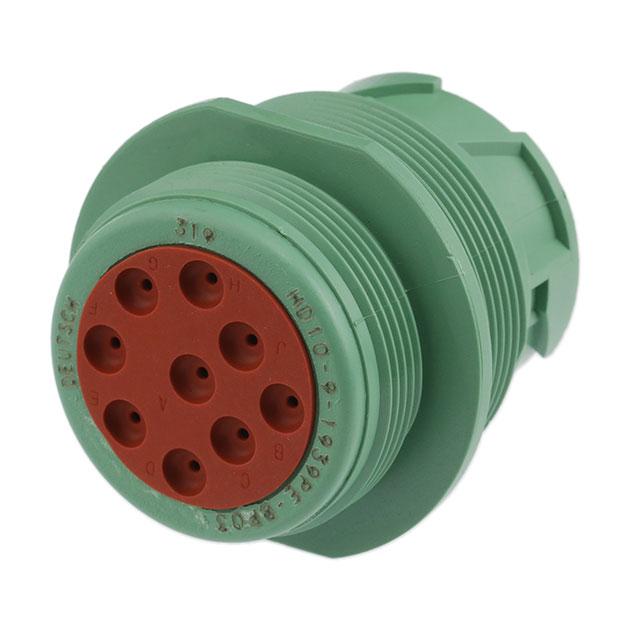

TE Connectivity Deutsch Connectors HD10-9-1939PE-BP03

HD10-9-1939PE-BP03 TE Connectivity Deutsch Connectors
HD10-9-1939PE-BP03
TE Connectivity Deutsch Connectors

Product Information

HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead
Note:
Contacts Not Included; Jam Nut Not Included
Operating Temperature:
-40°C ~ 125°C
Shell Size, MIL:
-
Type:
For Male Pins
Number of Positions:
9
Shielding:
Unshielded
Shell Material:
Polyamide (PA), Nylon, Glass Filled
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
HD10-9-1939PE-BP03 Models
Housing Color:
Green
Material Flammability Rating:
UL94 V-1
edacadModelUrl:
/en/models/7219999
Contact Shape:
Circular
Contact Size:
16
Package:
Bulk
Shell Size - Insert:
9-39
Connector Type:
Receptacle Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp
Fastening Type:
Bayonet Lock
standardLeadTime:
10 Weeks
Insert Material:
Polyamide (PA), Nylon, Glass Filled
Orientation:
Keyed
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
-
Series:
HD10
Base Product Number:
HD10
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is HD10-9-1939PE-BP03. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs3 compliant. The product's mounting feature includes bulkhead. Note: contacts not included; jam nut not included. The product has -40°c ~ 125°c operating temperature range. It comes in for male pins configuration. The product carries possible position value of 9. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon, glass filled materials. In addition, it is reach unaffected. It has an integral green housing colour. It carries ul94 v-1 of material flammability rating. It has a typical circular shape. While it has a 16 of contact size. It is shipped in bulk package . The insert's size is 9-39. receptacle housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp. Furthermore, bayonet lock is the Fastening Type of the product. It has a long 10 weeks standard lead time. While it is also supplied with highly stable polyamide (pa), nylon, glass filled insert material. The product has a keyed orientation. It is IP rated with ip68 - dust tight, waterproof. The product is available in panel mount configuration. The product hd10, is a highly preferred choice for users. Moreover, it corresponds to hd10, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Tooling capacity 17/OCT/2022(PCN Assembly/Origin)
pdf icon
HD10-9-1939PE-BP03(Datasheets)
pdf icon
HD10-9-1939Px-BP03 Drawing(Product Drawings)
