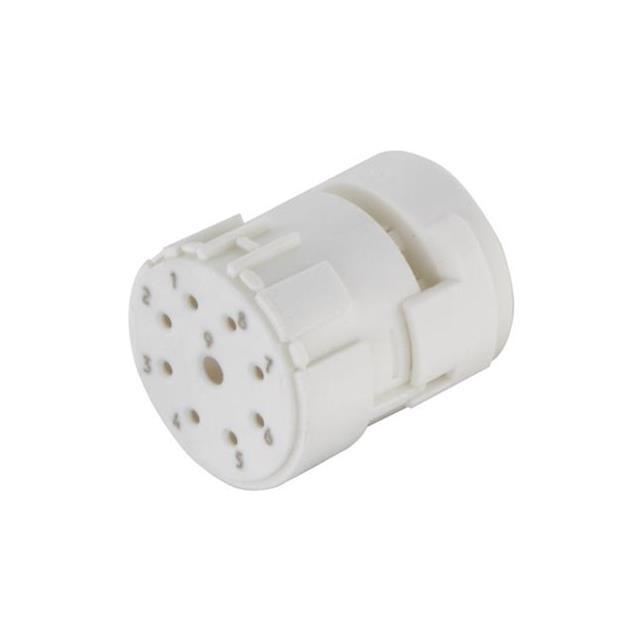

HARTING 09151093101
Product Information
Current Rating:
20.0A
Mating Type:
Push-Pull
Mounting Type:
Cable Mount
IP Rating:
IP67, IP69K
Series:
Han M23
Body Orientation:
Straight
Voltage Rating:
200 V
Pole Format:
9P
Contact Gender:
Female
Housing Material:
Copper
Plug/Socket:
Plug
Connector Size:
M23
Minimum Operating Temperature:
-40°C
Termination Method:
Crimp
Number of Contacts:
9
Maximum Operating Temperature:
+125°C
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included; Insert Only, Requires Shell
Operating Temperature:
-40°C ~ 125°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
9
Shielding:
Unshielded
Shell Material:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
09151093101 Models
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8036192
Contact Shape:
Circular
Contact Size:
1.0mm (8), 2.0mm (1)
Package:
Bulk
Shell Size - Insert:
M23-9
Connector Type:
Insert
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp
Fastening Type:
-
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
Keyed
Ingress Protection:
-
Features:
-
Mounting Type:
-
Shell Finish:
-
Series:
Han® M23
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09151093101 on website for other similar products.
We accept all major payment methods for all products including ET14752170. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09151093101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09151093101. You can also check on our website or by contacting our customer support team for further order details on HARTING 09151093101.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14752170 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14752170.
Yes. We ship 09151093101 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09151093101. The product has a current rating of 20.0a. It is a type of push-pull mating. The product is available in cable mount configuration. It is IP rated with ip67, ip69k. The product han m23, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 200 v voltage rating. While the pole has 9p format. This female contact is widely suited for specific applications. The product also features robust copper housing material. It comprises a plug. The connector has m23 size. Whereas, the minimum operating temperature of the product is -40°c. It allows crimp termination method. The product contains 9 contacts. It has a maximum operating temperature of +125°c. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included; insert only, requires shell. The product has -40°c ~ 125°c operating temperature range. It comes in for female sockets configuration. The product carries possible position value of 9. Furthermore, the product is shielded with unshielded. In addition, it is reach unaffected. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. While it has a 1.0mm (8), 2.0mm (1) of contact size. It is shipped in bulk package . The insert's size is m23-9. insert Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of crimp. It has a long 8 weeks standard lead time. While it is also supplied with highly stable polyamide (pa), nylon insert material. The product has a keyed orientation. The product han® m23, is a highly preferred choice for users. The product is designated with the ear99 code number.
