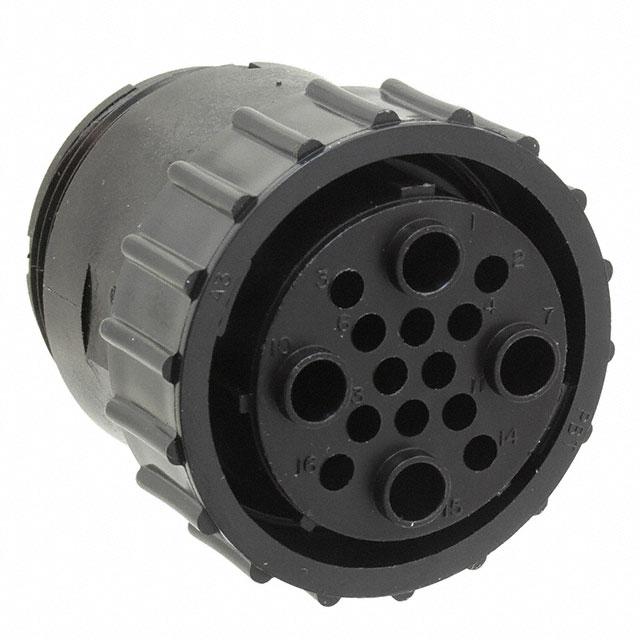

TE Connectivity AMP Connectors 796203-1

796203-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8538.90.6000
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 105°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
16 (12 + 4 Power)
Shielding:
Unshielded
title:
796203-1
Shell Material:
Polyamide (PA), Nylon
REACH Status:
Vendor Undefined
Includes:
-
edacadModel:
796203-1 Models
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2277191
Contact Shape:
Circular
Manufacturer:
TE Connectivity AMP Connectors
Contact Size:
16 (12), 8 Power (4)
Shell Size - Insert:
23-16
Connector Type:
Plug Housing
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Crimp
Fastening Type:
Threaded
standardLeadTime:
7 Weeks
Insert Material:
Thermoplastic
Orientation:
Keyed
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
CPC Series 6
Packaging:
Bulk
Base Product Number:
796203
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 796203-1. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs compliant. Note: contacts not included. The product has -55°c ~ 105°c operating temperature range. It comes in for female sockets configuration. The product carries possible position value of 16 (12 + 4 power). Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon materials. In addition, it is vendor undefined. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The te connectivity amp connectors's product offers user-desired applications. While it has a 16 (12), 8 power (4) of contact size. The insert's size is 23-16. plug housing Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of crimp. Furthermore, threaded is the Fastening Type of the product. It has a long 7 weeks standard lead time. While it is also supplied with highly stable thermoplastic insert material. The product has a keyed orientation. It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. The splendid features of the product include coupling nut. The product is available in free hanging (in-line) configuration. The product cpc series 6, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 796203, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Marking chg 31/MAY/2022(PCN Design/Specification)
pdf icon
Multiple Devices Marking 01/May/2018(PCN Design/Specification)
pdf icon
796203-1(Datasheets)
