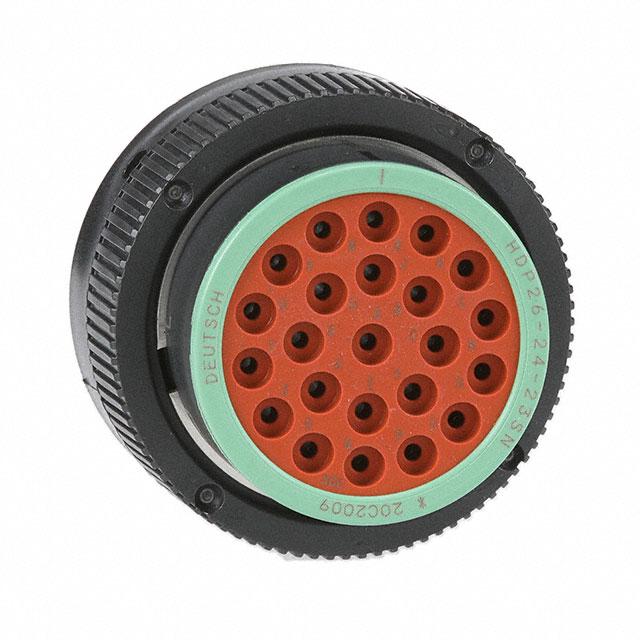

TE Connectivity Deutsch Connectors HDP26-24-23SN

HDP26-24-23SN TE Connectivity Deutsch Connectors
HDP26-24-23SN
TE Connectivity Deutsch Connectors

Product Information

HTSUS:
8538.90.6000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 125°C
Shell Size, MIL:
-
Type:
For Female Sockets
Number of Positions:
23
Shielding:
Unshielded
Shell Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
REACH Status:
Vendor Undefined
Includes:
-
edacadModel:
HDP26-24-23SN Models
Housing Color:
Black
Material Flammability Rating:
UL94 V-1
edacadModelUrl:
/en/models/6600307
Contact Shape:
Circular
Manufacturer:
TE Connectivity Deutsch Connectors
Contact Size:
16
Shell Size - Insert:
24-23
Connector Type:
Plug Housing
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Crimp
Fastening Type:
Bayonet Lock
standardLeadTime:
18 Weeks
Insert Material:
Polyetherimide (PEI)
Orientation:
Keyed
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Series:
HDP20
Packaging:
Bulk
Base Product Number:
HDP26
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is HDP26-24-23SN. It is assigned with possible HTSUS value of 8538.90.6000. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 125°c operating temperature range. It comes in for female sockets configuration. The product carries possible position value of 23. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa66), nylon 6/6, glass filled materials. In addition, it is vendor undefined. It has an integral black housing colour. It carries ul94 v-1 of material flammability rating. It has a typical circular shape. The te connectivity deutsch connectors's product offers user-desired applications. While it has a 16 of contact size. The insert's size is 24-23. plug housing Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. It has typical contact type of crimp. Furthermore, bayonet lock is the Fastening Type of the product. It has a long 18 weeks standard lead time. While it is also supplied with highly stable polyetherimide (pei) insert material. The product has a keyed orientation. It is IP rated with ip68 - dust tight, waterproof. The splendid features of the product include coupling nut. The product is available in free hanging (in-line) configuration. The product hdp20, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to hdp26, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Molding process chg 13/SEP/2022(PCN Assembly/Origin)
pdf icon
Mult Devs - material chg 01/JUL/2021(PCN Design/Specification)
pdf icon
Tooling Capacity 18/FEB/2021(PCN Design/Specification)
pdf icon
HDP Series Spec Sheet(Datasheets)
pdf icon
Multiple Devices Packaging 22/Aug/2019(PCN Packaging)
