American Wire Gauge:
22 AWG, 24 AWG
Current Rating:
4 A
Conductor Resistance:
55 (Power) Ω/km, 90 (Signal) Ω/km
Oil Resistant:
Yes
Number of Cores:
4
Outer Diameter:
6.9mm
Number of Strands:
19
Standards Met:
IEC 60332-3-25, IEC 60512-11-4, IEC 61076-2-101
Cable Shape:
Multicore
Voltage Rating:
60 V
Core Strands:
(Signal Line) 19 x 0.13 mm, (Voltage Supply) 19 x 0.16 mm
Shielded/Unshielded:
Shielded
Operating Temperature Range:
-40 → +105 °C
Maximum Operating Temperature:
+105°C
IP Rating:
IP65, IP67, IP68, IP69K
Connector 1 Orientation:
Straight
Minimum Bend Radius:
10 x D (Flexible), 5 x D (Fixed)
Connector 1 Gender:
Male
Length:
2m
Characteristic Impedance:
120 Ω
Sheath Material:
Flame Retardant Non-Corrosive FRNC
Conductor Material:
CuSn

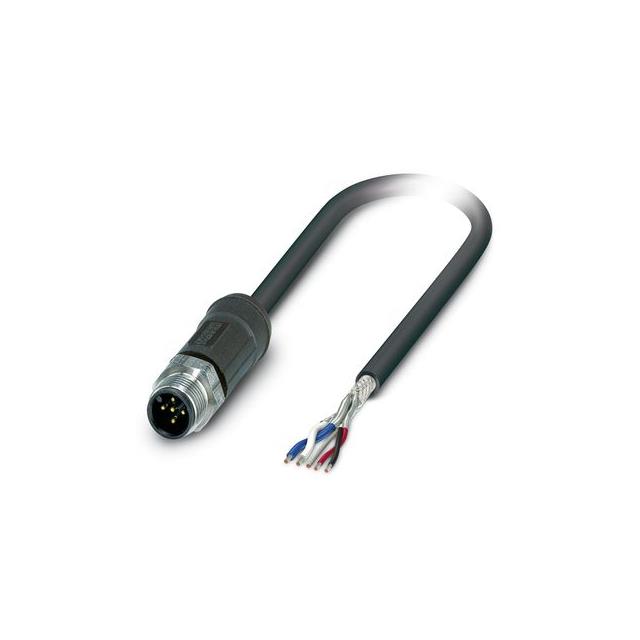

Series:
SAC-5P-M12MS/ 2.0-92X SH OD
Size of Strands:
0.13 (Signal) mm, 0.16 (Voltage Supply) mm
Connector 1 Number of Contacts:
5
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
(Signal) 0.25 mm², (Power) 0.34 mm², (Drain Wire) 0.38 mm²
Minimum Operating Temperature:
-40°C
Connector 2:
Unterminated
Connector 1:
M12
Connector 1 Housing Gender:
Male
Insulation Material:
PE
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
edacadModel:
1410471 Models
Cable Material:
Flame Retardant Non-Corrosive (FRNC)
2nd Connector Type:
Wire Leads
edacadModelUrl:
/en/models/5199009
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
2nd Connector Number of Positions Loaded:
-
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
6.56' (2.00m)
1st Connector Gender:
Male Pins
standardLeadTime:
4 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
5
Ingress Protection:
IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
Packaging:
Bulk
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
