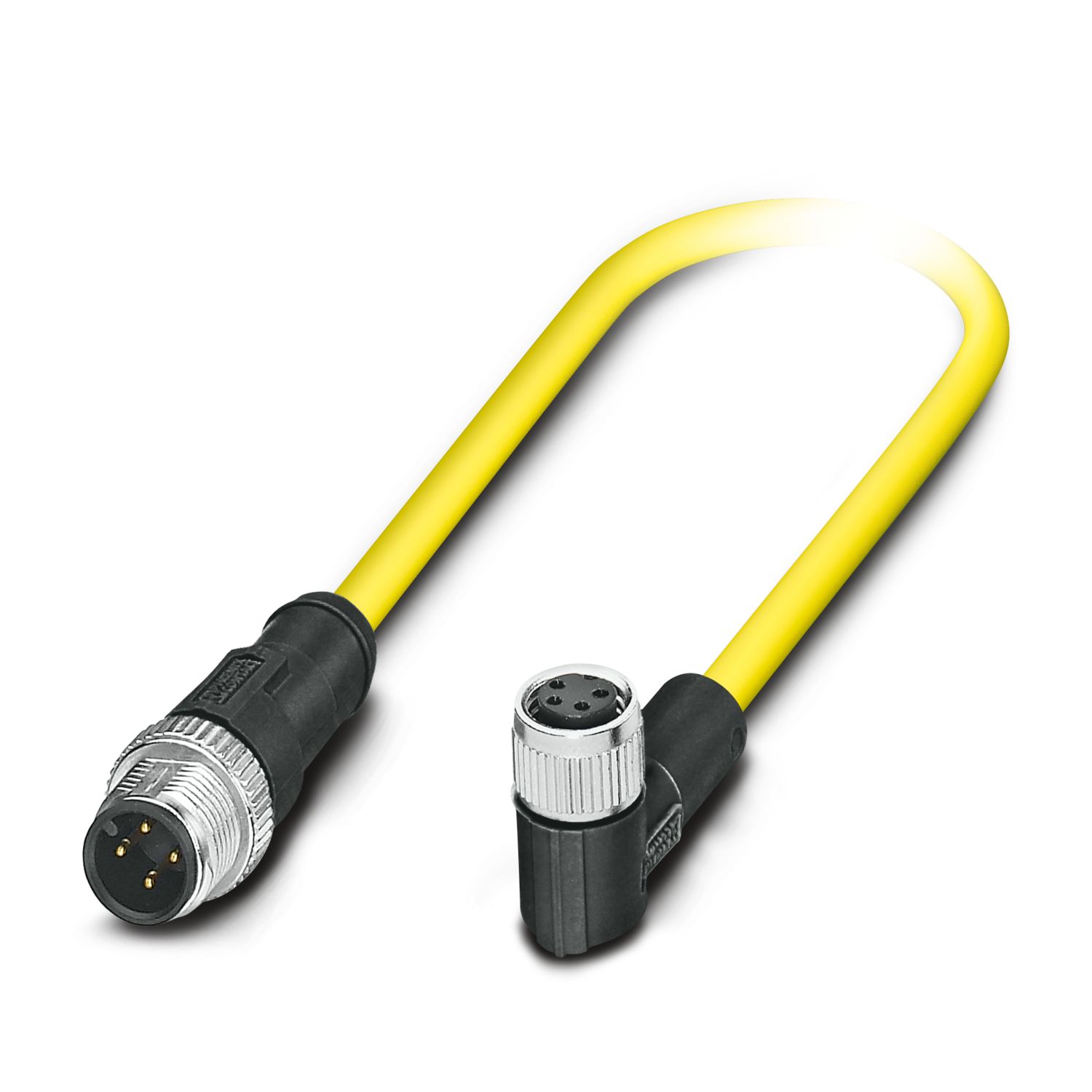

Phoenix Contact 1406219
Product Information
American Wire Gauge:
24 AWG
Current Rating:
4 A
Conductor Resistance:
79.7 Ω/km
Number of Cores:
4
Connector 2 Housing Gender:
Male
Shielding:
Unshielded
Standards Met:
cUL, UL
Connector 1 Number of Contacts:
4
Operating Temperature Range:
-30 → +105 °C
Shielded/Unshielded:
Unshielded
Maximum Operating Temperature:
+105°C
IP Rating:
IP65, IP67, IP68
Connector 1 Orientation:
Right Angle
Connector 1 Gender:
Female
Armoured:
No
Length:
500mm
Number of Strands:
4
Sheath Material:
PVC
Connector 2 Orientation:
Straight
Connector 2 Gender:
Male
Connector 2 Number of Contacts:
4
Conductor Material:
Tin Plated Copper Litz Wires
Series:
SAC-4P-MS/0.5-542/M8 FR SCO BK
Connector 1 Housing Gender:
Female
Coding:
A
Sheath Colour:
Yellow
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-30°C
Connector 2:
M12
Connector 1:
M8
Insulation Material:
PVC
1st Connector Orientation:
A
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyvinyl Chloride (PVC)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
edacadModel:
1406219 Models
2nd Connector Type:
Plug, Right Angle
edacadModelUrl:
/en/models/4291430
Assembly Configuration:
Standard
2nd Connector Number of Positions:
4
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1.64' (500.00mm)
1st Connector Gender:
Male Pins
standardLeadTime:
4 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
M8
1st Connector Number of Positions:
4
Ingress Protection:
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Color:
Yellow
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
All
2nd Connector Gender:
Female Sockets
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1406219 on website for other similar products.
We accept all major payment methods for all products including ET12323171. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1406219 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Cable Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1406219. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1406219.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12323171 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12323171.
Yes. We ship 1406219 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1406219. Features 24 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 79.7 ω/km resistance. The product consists of 4 cores. Additionally, its connector 2 housing is of male gender . Furthermore, the product is shielded with unshielded. The product complies with all safety standards, such as cul, ul. There are 4 contacts on connector 1. The product has -30 → +105 °c of operating temperature range. Moreover, the product is unshielded . It has a maximum operating temperature of +105°c. It is IP rated with ip65, ip67, ip68. The connector 1 has a right angle orientation. This connector 1 is a female. It is armoured no . Its accurate length is 500mm. Additionally, it contains 4 strands. The sheath is constructed from durable and adorable pvc material. In addition, its connector 2 orientation is straight . Connector 2 is a male connector. On the other hand, the connector 2 has 4 contacts. The conductor is made from tin plated copper litz wires material. The product sac-4p-ms/0.5-542/m8 fr sco bk, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. The product is coded with a. The sheath has an adorable yellow colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -30°c. While the Connector 2 is m12. Connector 1 is m8. It has a robust pvc insulation material. This connector has a a orientation. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyvinyl chloride (pvc) materials. The product's typical Applications include uses in industrial environments. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The second connector is the plug, right angle. The product is designed in a standard assembly configuration. The number of positions on the second connector are 4. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1.64' (500.00mm). The first connectors are male pins. It has a long 4 weeks standard lead time. receptacle is the first connector. The shell size of the second connector is m8. The first connector contains 4 positions. It is IP rated with ip65/ip67/ip68 - dust tight, water resistant, waterproof. It has a classic yellow colour. It is a typical round cable. While the loaded positions on the second connector are all. Second connectors come as female sockets. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
