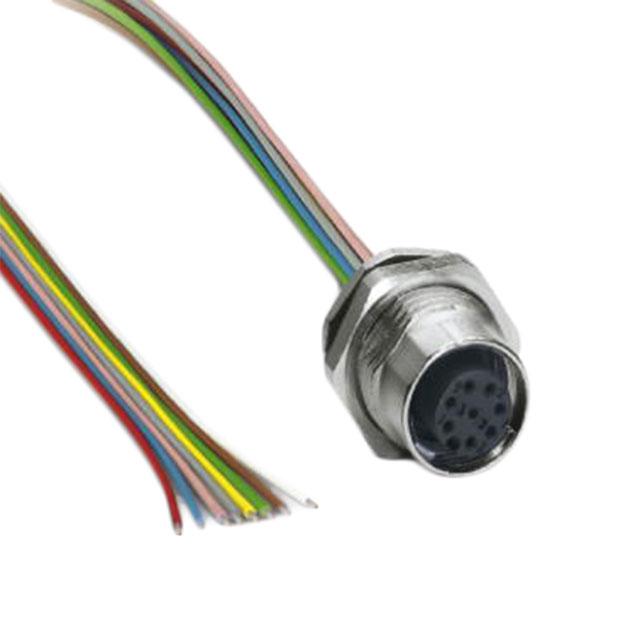

Phoenix Contact 1419690
Product Information
American Wire Gauge:
24 AWG
Current Rating:
2 A
Standards Met:
cULus, EAC, IEC 61076-2-101, UL
Mounting Type:
Panel Mount
IP Rating:
IP67
Conductor Material:
Tinned Copper
Series:
5, SACC-DSI-M12FS-8CON-M16/0
Connector 1 Housing Gender:
Female
Voltage Rating:
30 V
Coding:
A
Connector 1 Gender:
Female
Length:
500mm
Insulation Material:
TPE
Minimum Operating Temperature:
-25 (Flexible) °C, -40 (Fixed) °C
Number of Cores:
8
Conductor Resistance:
0.08 O/m
Connector 1:
M12
Maximum Operating Temperature:
+85°C
Connector 1 Number of Contacts:
8
Cross Sectional Area:
0.25 mm²
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Thermoplastic Elastomer (TPE)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Affected
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1.64' (500.00mm)
1st Connector Gender:
Female Sockets
standardLeadTime:
8 Weeks
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
8
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Color:
Multiple
Series:
-
2nd Connector Orientation:
-
Cable Type:
Individual
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Panel Mount
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1419690 on website for other similar products.
We accept all major payment methods for all products including ET11293274. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1419690 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Cable Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1419690. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1419690.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11293274 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11293274.
Yes. We ship 1419690 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1419690. Features 24 awg - American Wire Gauge. The product has a current rating of 2 a. The product complies with all safety standards, such as culus, eac, iec 61076-2-101, ul. The product is available in panel mount configuration. It is IP rated with ip67. The conductor is made from tinned copper material. The product 5, sacc-dsi-m12fs-8con-m16/0, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. Moreover, the product has a nominal 30 v voltage rating. The product is coded with a. This connector 1 is a female. Its accurate length is 500mm. It has a robust tpe insulation material. Whereas, the minimum operating temperature of the product is -25 (flexible) °c, -40 (fixed) °c. The product consists of 8 cores. The conductor has 0.08 o/m resistance. Connector 1 is m12. It has a maximum operating temperature of +85°c. There are 8 contacts on connector 1. The product has 0.25 mm² cross section area. This connector has a a orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. The cable is constructed from highly durable thermoplastic elastomer (tpe) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. In addition, it is reach affected. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1.64' (500.00mm). The first connectors are female sockets. It has a long 8 weeks standard lead time. plug is the first connector. The first connector contains 8 positions. It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. It has a classic multiple colour. It is a typical individual cable. The first connector is configured with a panel mount mounting type. The product is designated with the ear99 code number.
