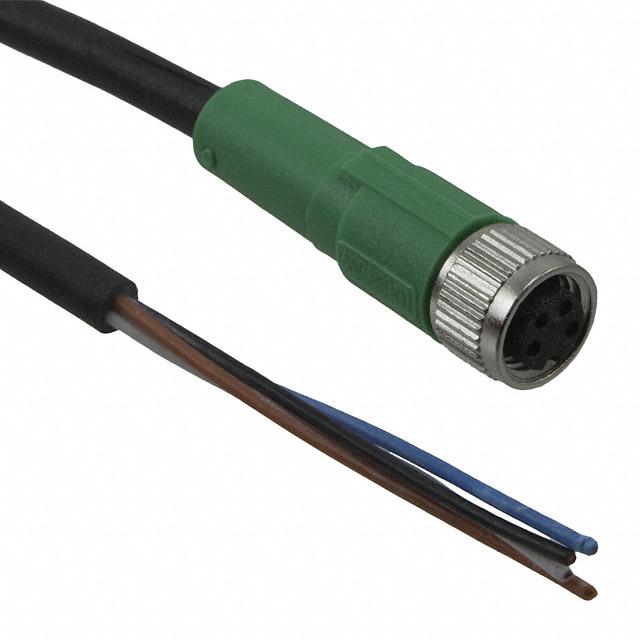

Phoenix Contact 1681868
Product Information
American Wire Gauge:
24 AWG
Current Rating:
4 A
Conductor Resistance:
78 Ω/km
Standards Met:
cUL, cULus, EAC, UL
Connector 1 Number of Contacts:
4
Voltage Rating:
30 V
Shielded/Unshielded:
Unshielded
Operating Temperature Range:
-25 → +90 °C
Maximum Operating Temperature:
+90°C
IP Rating:
IP65, IP67, IP68
Connector 1 Orientation:
Straight
Connector 1 Gender:
Female
Length:
5m
Sheath Material:
PUR
Conductor Material:
Bare Cu litz wires
Series:
SAC-4P- 5.0-PUR/M 8FS
Connector 1 Housing Gender:
Female
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-25°C
Connector 2:
Unterminated
Connector 1:
M8
Insulation Material:
PP
1st Connector Orientation:
-
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M8
REACH Status:
REACH Unaffected
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
16.40' (5.00m)
1st Connector Gender:
Female Sockets
standardLeadTime:
8 Weeks
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
4
Ingress Protection:
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1681868 on website for other similar products.
We accept all major payment methods for all products including ET11200429. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1681868 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circular Cable Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1681868. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1681868.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11200429 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11200429.
Yes. We ship 1681868 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1681868. Features 24 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 78 ω/km resistance. The product complies with all safety standards, such as cul, culus, eac, ul. There are 4 contacts on connector 1. Moreover, the product has a nominal 30 v voltage rating. Moreover, the product is unshielded . The product has -25 → +90 °c of operating temperature range. It has a maximum operating temperature of +90°c. It is IP rated with ip65, ip67, ip68. The connector 1 has a straight orientation. This connector 1 is a female. Its accurate length is 5m. The sheath is constructed from durable and adorable pur material. The conductor is made from bare cu litz wires material. The product sac-4p- 5.0-pur/m 8fs, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. The product is coded with a. The sheath has an adorable black colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -25°c. While the Connector 2 is unterminated. Connector 1 is m8. It has a robust pp insulation material. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m8. In addition, it is reach unaffected. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 16.40' (5.00m). The first connectors are female sockets. It has a long 8 weeks standard lead time. plug is the first connector. The first connector contains 4 positions. It is IP rated with ip65/ip67/ip68 - dust tight, water resistant, waterproof. It has a classic black colour. It is a typical round cable. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
