American Wire Gauge:
22 AWG
Current Rating:
4 A
Conductor Resistance:
57 O/km
Oil Resistant:
Yes
Outer Diameter:
5.25mm
Standards Met:
cUL, cULus, EAC, IEC 61076-2-101, UL
Connector 1 Number of Contacts:
5
Voltage Rating:
48 V
Shielded/Unshielded:
Shielded
Maximum Operating Temperature:
+80°C
IP Rating:
IP65, IP67, IP69K
Connector 1 Orientation:
Straight
Minimum Bend Radius:
26 (Fixed) mm, 52 (Flexible) mm
Fire Behaviour:
Halogen Free
Connector 1 Gender:
Male
Length:
3m
Sheath Material:
PUR
Conductor Material:
Copper
Series:
SAC-5P-M12MS/ 3.0-PUR SH
Connector 1 Housing Gender:
Male
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-25 (Flexible) °C, -40 (Fixed) °C
Connector 2:
Unterminated
Connector 1:
M12
Insulation Material:
PP
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Unaffected
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
9.84' (3.00m)
1st Connector Gender:
Male Pins
standardLeadTime:
4 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
5
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99

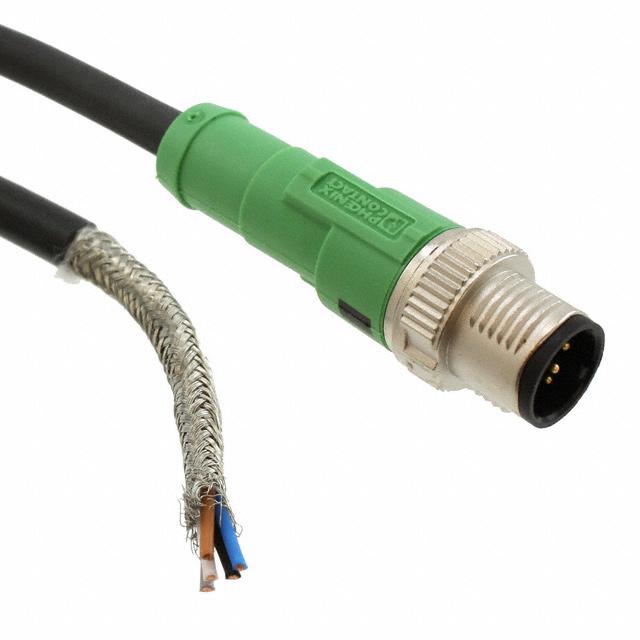

This is manufactured by Phoenix Contact. The manufacturer part number is 1682744. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 57 o/km resistance. Additionally, it is oil resistant yes . Its outer diameter is 5.25mm. The product complies with all safety standards, such as cul, culus, eac, iec 61076-2-101, ul. There are 5 contacts on connector 1. Moreover, the product has a nominal 48 v voltage rating. Moreover, the product is shielded . It has a maximum operating temperature of +80°c. It is IP rated with ip65, ip67, ip69k. The connector 1 has a straight orientation. It bears 26 (fixed) mm, 52 (flexible) mm of minimum bend radius. The product has a halogen free fire behaviour. This connector 1 is a male. Its accurate length is 3m. The sheath is constructed from durable and adorable pur material. The conductor is made from copper material. The product sac-5p-m12ms/ 3.0-pur sh, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. The product is coded with a. The sheath has an adorable black colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -25 (flexible) °c, -40 (fixed) °c. While the Connector 2 is unterminated. Connector 1 is m12. It has a robust pp insulation material. This connector has a a orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. In addition, it is reach unaffected. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 9.84' (3.00m). The first connectors are male pins. It has a long 4 weeks standard lead time. receptacle is the first connector. The first connector contains 5 positions. It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. It has a classic black colour. It is a typical round cable. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
