American Wire Gauge:
22 AWG
Current Rating:
4 A
Conductor Resistance:
5 mO
Oil Resistant:
Yes
Number of Cores:
4
Outer Diameter:
4.2 ± 0.15mm
Standards Met:
cUL, UL
Connector 1 Number of Contacts:
4
Operating Temperature Range:
-40 → +80 °C
Shielded/Unshielded:
Shielded
Maximum Operating Temperature:
+80°C
IP Rating:
IP65, IP67, IP68

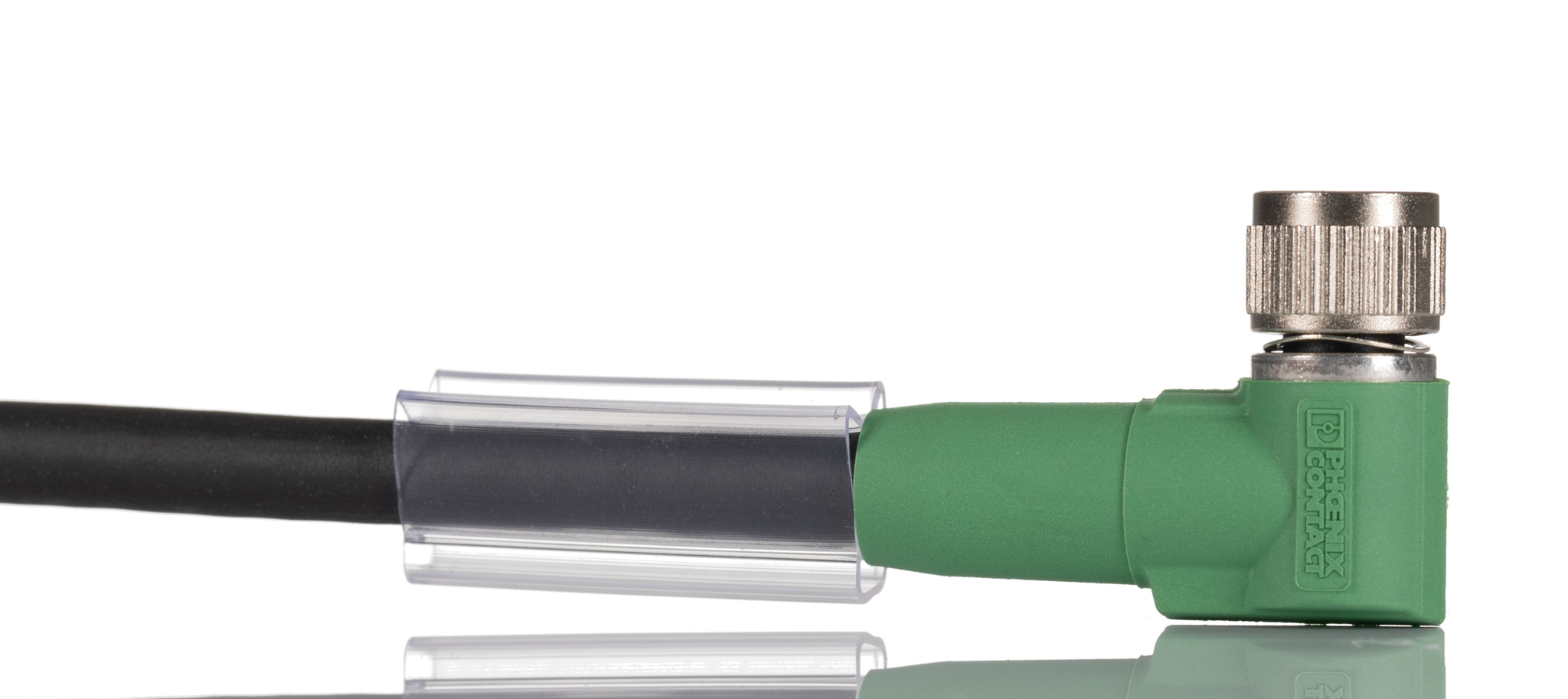

Connector 1 Orientation:
Right Angle
Minimum Bend Radius:
10 x D (Flexible) 5 x D (Fixed)
Fire Behaviour:
Halogen Free, Self-extinguishing
Connector 1 Gender:
Female

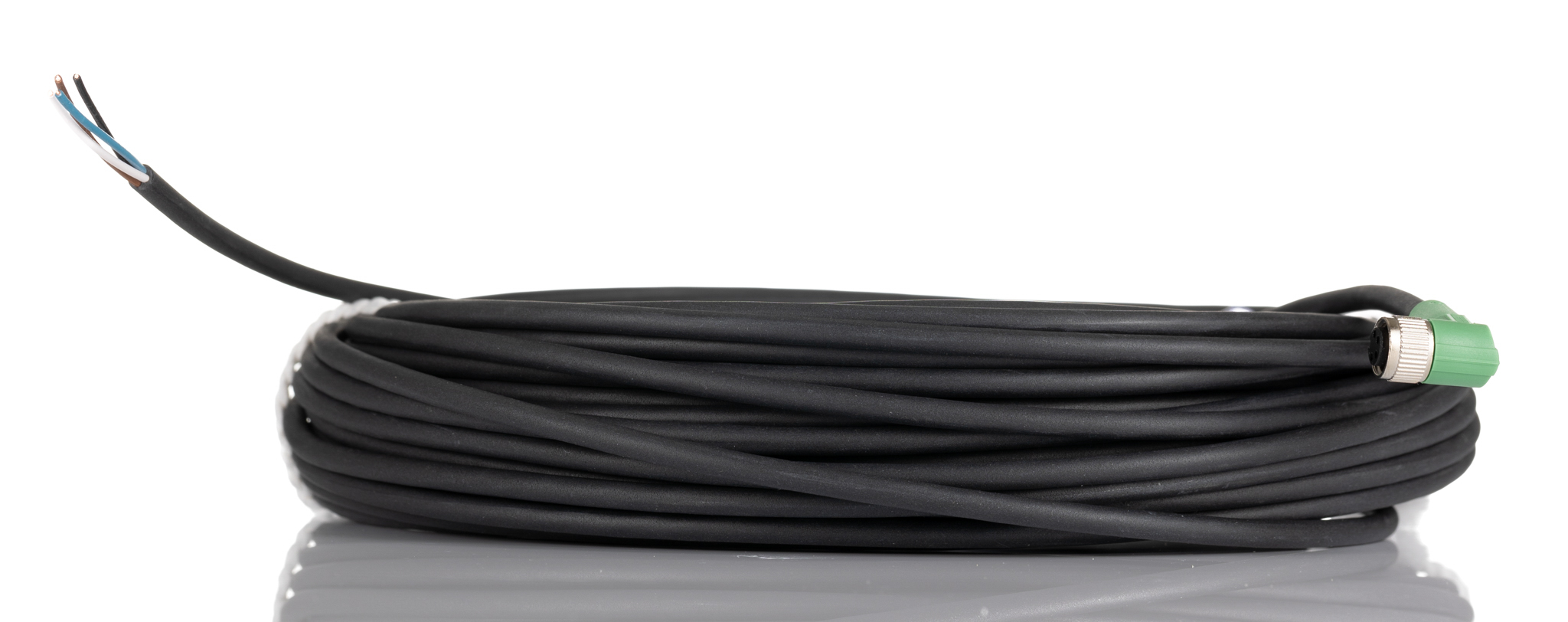

Length:
20m
Sheath Material:
Polyurethane PUR

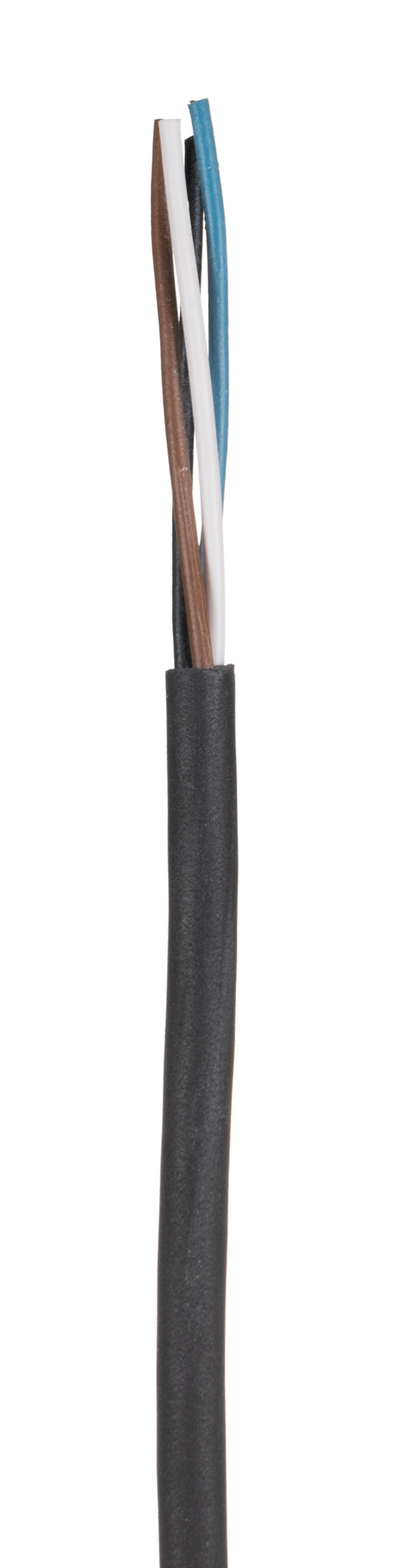

Conductor Material:
Bare Cu litz wires
Series:
SAC
Connector 1 Housing Gender:
Female
Coding:
A
Sheath Colour:
Black/Grey
Cross Sectional Area:
4x 0.34 mm²
Minimum Operating Temperature:
-40°C
Connector 1:
M8
Insulation Material:
PP
1st Connector Orientation:
-
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M8
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
65.6' (20.0m)
1st Connector Gender:
Female Sockets
standardLeadTime:
6 Weeks
1st Connector Type:
Plug, Right Angle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
4
Ingress Protection:
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
This is manufactured by Phoenix Contact. The manufacturer part number is 1553116. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 5 mo resistance. Additionally, it is oil resistant yes . The product consists of 4 cores. Its outer diameter is 4.2 ± 0.15mm. The product complies with all safety standards, such as cul, ul. There are 4 contacts on connector 1. The product has -40 → +80 °c of operating temperature range. Moreover, the product is shielded . It has a maximum operating temperature of +80°c. It is IP rated with ip65, ip67, ip68. The connector 1 has a right angle orientation. It bears 10 x d (flexible) 5 x d (fixed) of minimum bend radius. The product has a halogen free, self-extinguishing fire behaviour. This connector 1 is a female. Its accurate length is 20m. The sheath is constructed from durable and adorable polyurethane pur material. The conductor is made from bare cu litz wires material. The product sac, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. The product is coded with a. The sheath has an adorable black/grey colour. The product has 4x 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. Connector 1 is m8. It has a robust pp insulation material. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m8. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 65.6' (20.0m). The first connectors are female sockets. It has a long 6 weeks standard lead time. plug, right angle is the first connector. The first connector contains 4 positions. It is IP rated with ip65/ip67/ip68 - dust tight, water resistant, waterproof. It has a classic black colour. It is a typical round cable. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
