American Wire Gauge:
22 AWG
Current Rating:
4 A
Conductor Resistance:
58 Ω/km
Oil Resistant:
Yes
Number of Cores:
5
Connector 2 Housing Gender:
Male
Outer Diameter:
4.55mm
Standards Met:
cUL, cULus, EAC, UL
Cable Shape:
Multicore
Voltage Rating:
60 V
Shielded/Unshielded:
Unshielded
Operating Temperature Range:
-40 → +80 °C
Maximum Operating Temperature:
+80°C
IP Rating:
IP65, IP67, IP68
Connector 1 Orientation:
Straight
Fire Behaviour:
Fire Resistant, Flame Retardant
Connector 1 Gender:
Female
Length:
300mm
Sheath Material:
PUR
Connector 2 Orientation:
Straight
Connector 2 Gender:
Male
Connector 2 Number of Contacts:
5
Mounting Type:
Cable Mount
Conductor Material:
Copper
Series:
SAC-5P-M12MS/0.3-PUR/M12FS
Connector 1 Housing Gender:
Female
Connector 1 Number of Contacts:
5
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-40°C
Connector 2:
M12
Connector 1:
M12
Insulation Material:
PE (Coaxial), PP (Twisted Pair)
1st Connector Orientation:
A
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Unaffected
2nd Connector Type:
Plug
Assembly Configuration:
Standard
2nd Connector Number of Positions:
5
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
0.98' (300.00mm)
1st Connector Gender:
Male Pins
standardLeadTime:
8 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
M12
1st Connector Number of Positions:
5
Ingress Protection:
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
A
Cable Type:
Round
2nd Connector Number of Positions Loaded:
All
2nd Connector Gender:
Female Sockets
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99

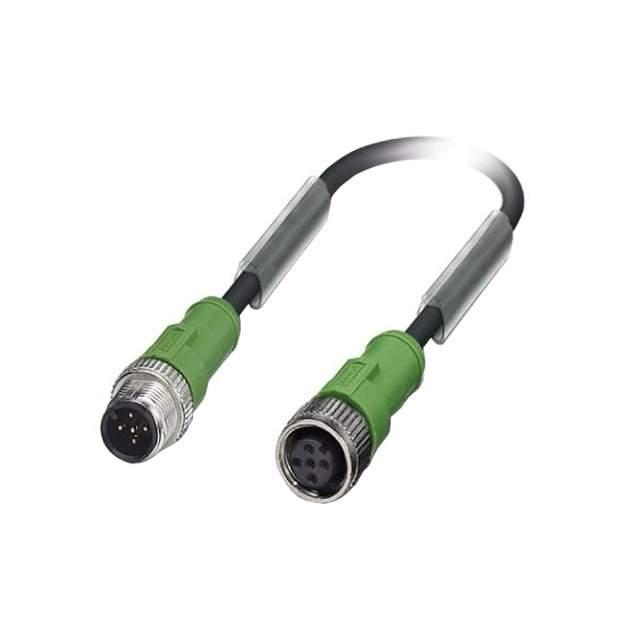

The 1681583 by Phoenix Contact is a versatile cable tailored for reliable and efficient connectivity in various applications. This cable is widely utilised in industrial automation, control systems, and other electrical installations where secure and high-quality connections are required. Its durable construction, ease of installation, and compatibility with various components make it valuable for industrial automation, control systems, and electrical installations.
Key Features of Phoenix Contact 1681583 Include:
Significant Benefits of Using Phoenix Contact 1681583:
Potential Applications of Phoenix Contact 1681583:
