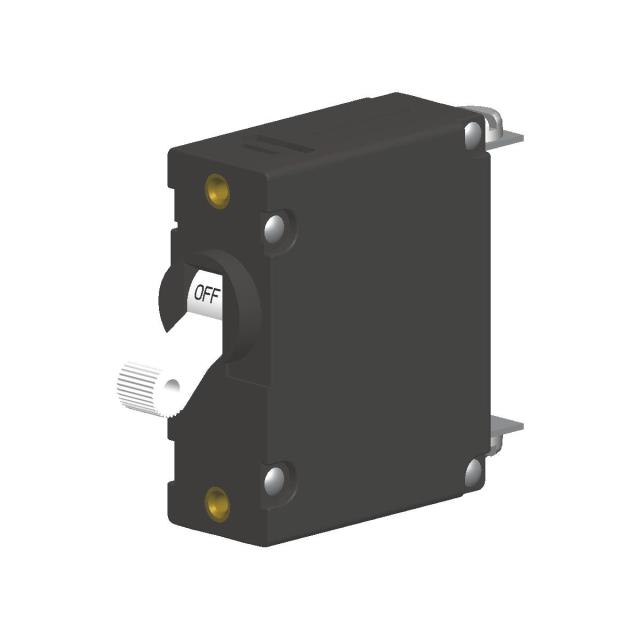

Carling Technologies AA1-B0-34-630-3B1-C
Product Information
Breaking Capacity at Maximum Voltage Rating:
5000 A @ 80 V dc
Current Rating:
30A
Tripping Mechanism:
Hydraulic-Magnetic
Series:
A
Mounting Hole Diameter:
16mm
Overall Dimensions:
19.18 x 50.8 x 59.16mm
Terminal Contact Type:
Screw
Rated DC Voltage:
80V
Mounting Style:
Panel Mount
Application:
Generators, Marine Applications, Military, Renewable Energy Systems, Telecommunications, Welder
Rated AC Voltage:
277V
Overall Length:
19.2mm
Overall Depth:
59.2mm
Special Features:
Meets IP68 Requirement, Specially Constructed Version Available For Applications Requiring CE Markings, The Metal Toggle Option was Tested to MIL-PRF-55629C for Ingress Protection When Mounted in a Panel
Number of Poles:
1
Reset Actuator Type:
Handle
Break Time:
Medium
HTSUS:
8536.20.0020
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
80 V
Approval Agency:
CSA, UL
Voltage Rating - AC:
277 V
REACH Status:
REACH Unaffected
Package:
Bulk
Breaker Type:
Magnetic (Hydraulic Delay)
standardLeadTime:
12 Weeks
Current Rating (Amps):
30A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Illumination Voltage (Nominal):
-
Mounting Type:
Panel Mount
Series:
A
Actuator Type:
Lever
Illumination:
None
Number of Poles:
1
Base Product Number:
AA1-B0
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AA1-B0-34-630-3B1-C on website for other similar products.
We accept all major payment methods for all products including ET10449296. Please check your shopping cart at the time of order.
You can order Carling Technologies brand products with AA1-B0-34-630-3B1-C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Circuit Breakers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Carling Technologies AA1-B0-34-630-3B1-C. You can also check on our website or by contacting our customer support team for further order details on Carling Technologies AA1-B0-34-630-3B1-C.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10449296 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Carling Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10449296.
Yes. We ship AA1-B0-34-630-3B1-C Internationally to many countries around the world.
This is manufactured by Carling Technologies. The manufacturer part number is AA1-B0-34-630-3B1-C. The product has 5000 a @ 80 v dc breaking capacity at maximum voltage rating. The product has a current rating of 30a. It utilises hydraulic-magnetic tripping mechanism. The product a, is a highly preferred choice for users. The given diameter of mounting hole is 16mm. Furthermore, the product has an overall dimensions of 19.18 x 50.8 x 59.16mm. The terminal contact is kind of screw. The product has a rated DC voltage of 80v. The product is available in panel mount style. Applications Information involves generators, marine applications, military, renewable energy systems, telecommunications, welder. The product has a rated AC voltage of 277v. It has an overall length of 19.2mm. Similarly, the product has 59.2mm of overall depth. The product also provides special features, such as meets ip68 requirement, specially constructed version available for applications requiring ce markings, the metal toggle option was tested to mil-prf-55629c for ingress protection when mounted in a panel. It has equipped with 1 poles. It is a handle reset actuator. It has a/an medium break time . It is assigned with possible HTSUS value of 8536.20.0020. The product is rohs3 compliant. 80 v of DC voltage rating. It is approved by csa, ul. The product exhibits 277 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is a type of magnetic (hydraulic delay) breaker. It has a long 12 weeks standard lead time. Additionally, the product's output is 30a. Its typical moisture sensitivity level is 1 (unlimited). The product is available in panel mount configuration. The product carries lever actuator. Is this product illuminated? none. Moreover, it corresponds to aa1-b0, a base product number of the product. The product is designated with the ear99 code number.
