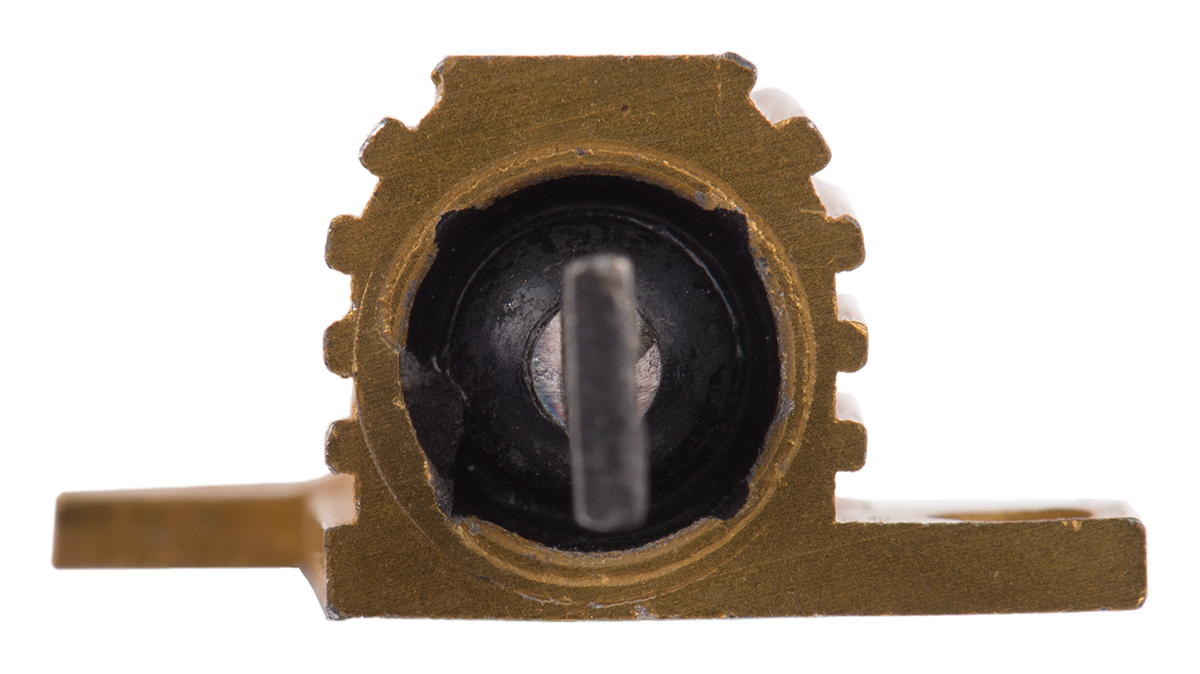

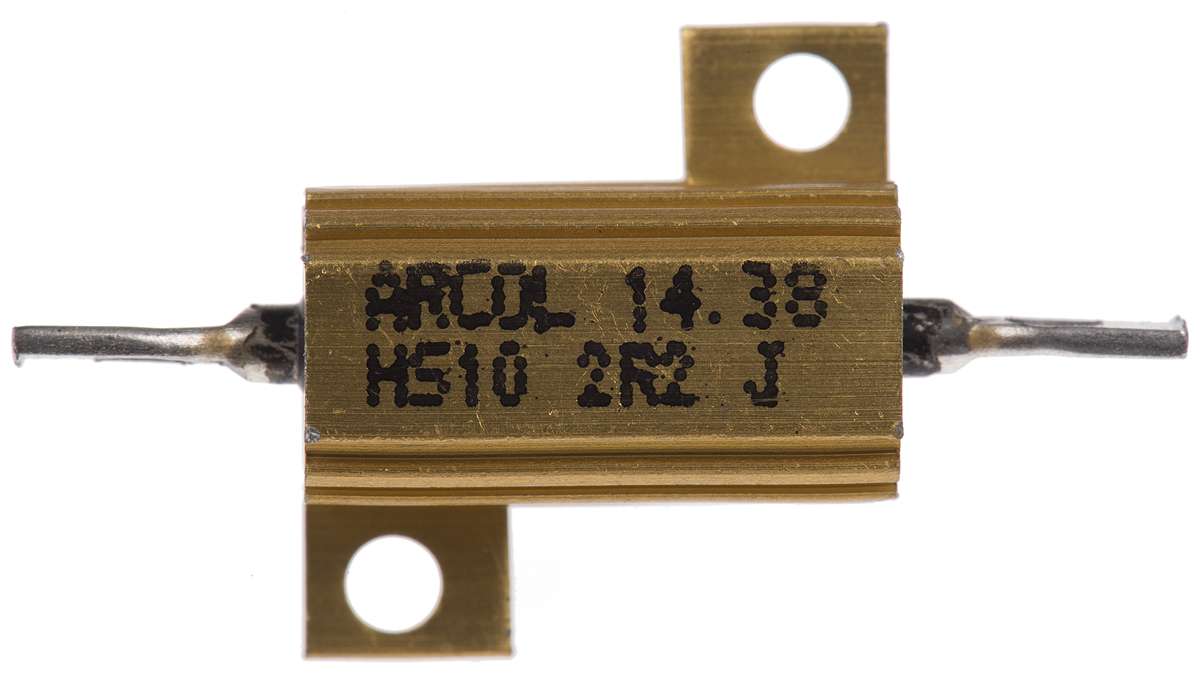

10W Aluminium housed wirewound power resistor, HS Series 10Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant. Compact size for Power rating Winding construction maximises High Pulse Capability Power at 25°C 10W with 5.8°C/W Heatsink 5.5W without Heatsink Resistance Tolerance ±5% Temperature Coefficient 1KΩ ±25ppm/°C Operating Temperature -55°C → +200°C Limiting Element Voltage 160Vdc/Vac (rms) Insulating Resistance 10000MΩ Length 30 mm Width 16.5 mm Height 8.8 mm Weight 4 g Note To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
For more information please check the datasheets.
