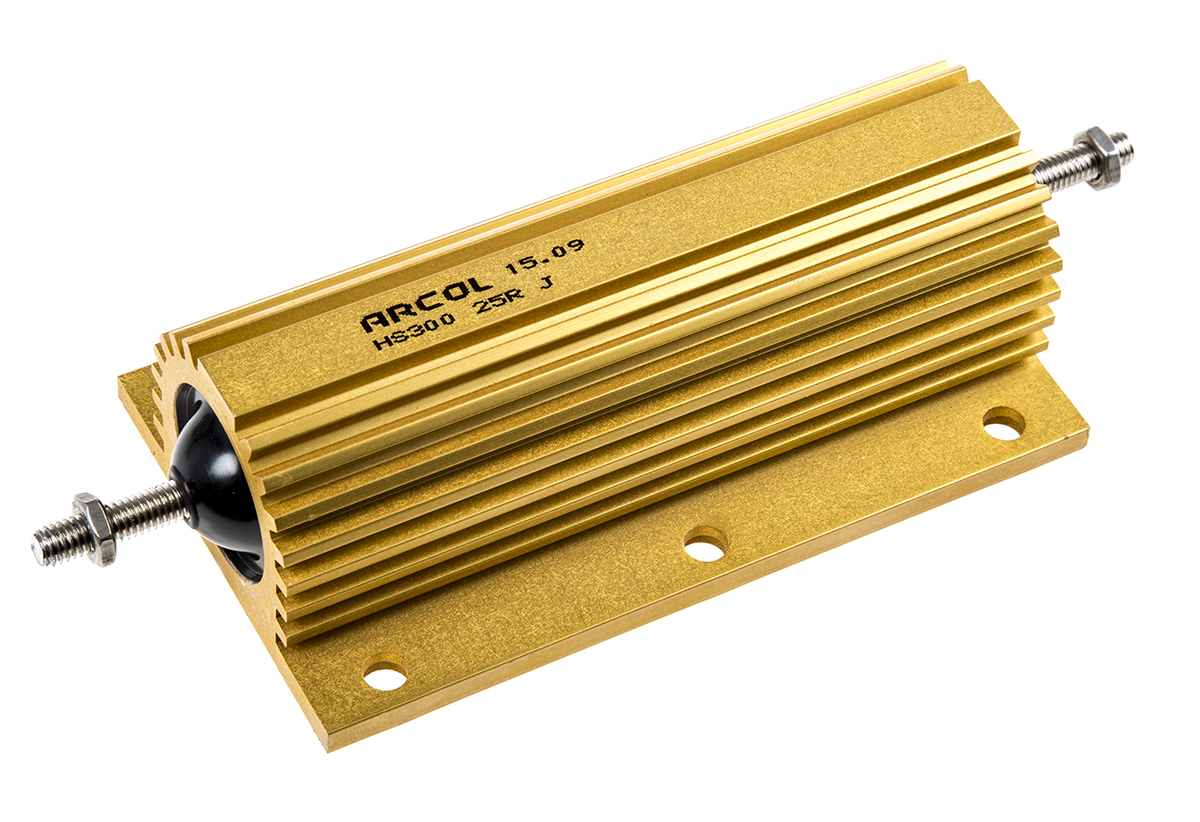

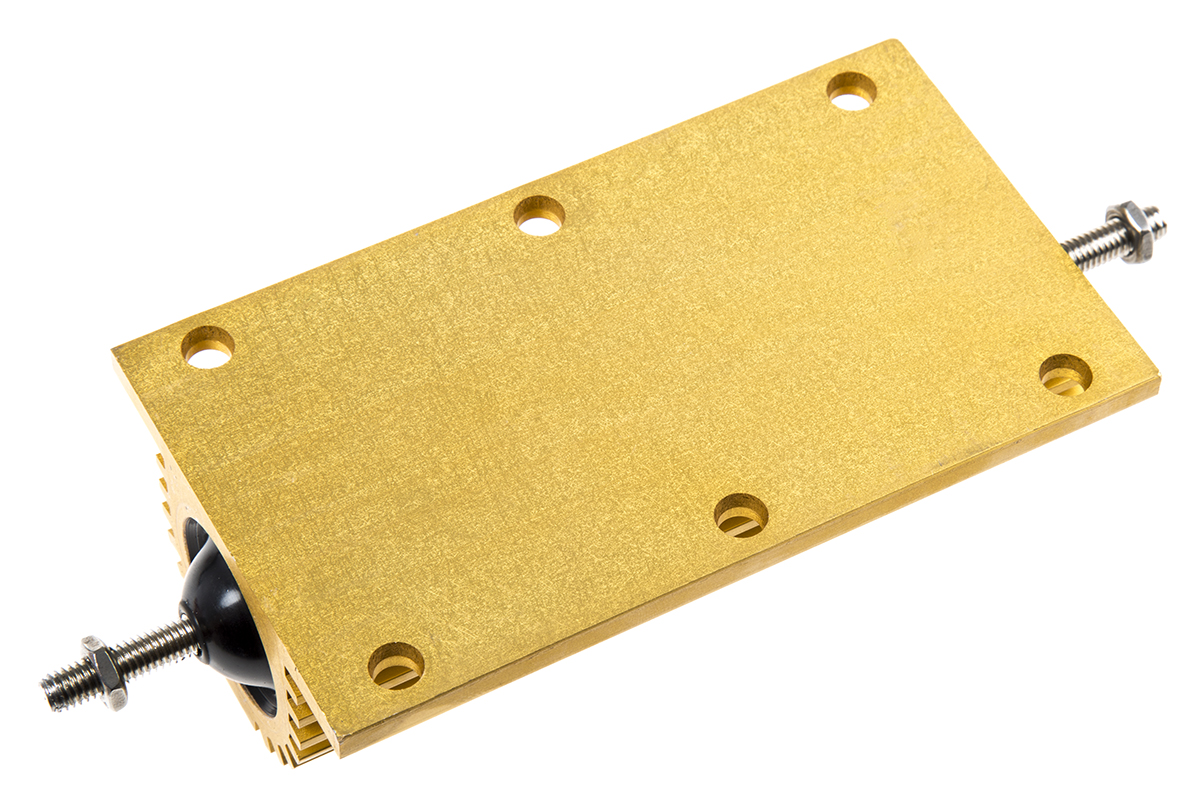

300W Aluminium housed wirewound power resistor, HS Series 300Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant. Compact size for Power rating Winding construction maximises High Pulse Capability Power At 25°C 300W with 0.6°C/W Heatsink, 75W without Heatsink Resistance Tolerance ±5% Temperature Coefficient 1KΩ ±25ppm/°C Operating Temperature -55°C → +200°C Limiting Element Voltage 2500Vdc/Vac (rms) Insulating Resistance 10000MΩ Length 184.4 mm Width 72.5 mm Height 41.8 mm Weight 700 g Note To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
For more information please check the datasheets.
