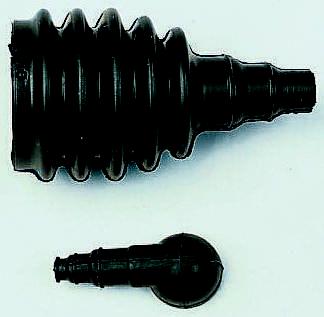

Amphenol Sealing Sleeve Black, Neoprene
Product Information
Adhesive Lined:
No
Maximum Operating Temperature:
+85°C
Colour:
Black
Material:
Neoprene
Number of Breakouts:
7
Minimum Operating Temperature:
-40°C
Type:
Sealing Sleeve
Technical Documents
Checking for live stock
More Information
Sealing sleeves SL 61
Splashproof sealing sleeves for plugs.
For use with straight or angled standard connectors (sleeve fitted inside).
Material:
neoprene
Level of sealing achieved:
IP 55
Amphenol - SL 61 Series Circular Connectors
This family of connectors is widely used in industrial an...
Sealing sleeves SL 61
Splashproof sealing sleeves for plugs.
For use with straight or angled standard connectors (sleeve fitted inside).
Material:
neoprene
Level of sealing achieved:
IP 55
Amphenol - SL 61 Series Circular Connectors
This family of connectors is widely used in industrial and electronic applications.
This series includes: sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories (blanking plugs, sealing sleeves).
Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 Amperes, and different contact arrangements.
Connected using screws, with positioning and guiding pin.
Dimensions
Size 10
280 V eff / RMS 225 V eff / RMS
Size 20
440 V eff / RMS 380 V eff / RMS
380 V eff / RMS 280 V eff / RMS 150 V eff / RMS
Size 30
500 V eff / RMS 480 V eff / RMS
400 V eff / RMS 175 V eff / RMS
Size 40
400 V eff / RMS
type
Ø
rear cup
cross-section
current
of cts
pin
Int. Ø
max. wire
rated
●
1 mm
1.1 mm
0.75 mm
2
7.5 A
1.5 mm
1.7 mm
1.75 mm
2
10 A
3 mm
3.1 mm
5.1 mm
2
25 A
5 mm
5.1 mm
13 mm
2
50 A
Four connector sizes:
10, 20, 30, 40
Four contact sizes:
7.5, 10, 25, 50 A
Materials (sockets, plug bodies, connectors):
lightweight alloy
Surface treatment:
- sockets, plug bodies:
white cadmium plating
- rear connectors:
black treatment, non-conductive
- cable clamps (rear connectors):
lever
- collar seals (sockets) and sealing sleeves:
neoprene
- insulation (sockets and plug bodies):
alkyd
- contacts:
made from copper alloy
- coating:
gold-plated nickel
Contact connection method:
by soldering
Contact resistance:
≤ 5 mΩ
Protection index:
IP 55 with sealing sleeves
Operating temperature:
-40°C → +85°C
Read more
