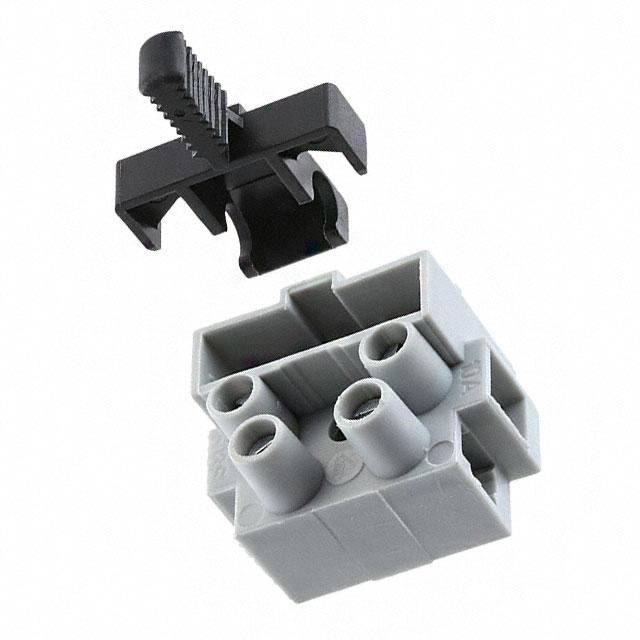

TE Connectivity AMP Connectors 1776301-7

1776301-7 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Terminal Screw Material:
Steel
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Bottom Termination:
Closed
Material - Insulation:
Polyamide (PA66), Nylon 6/6
Terminal Block Type:
Eurostyle Terminal Strip
Voltage Rating:
400V
Barrier Type:
Enclosed
edacadModel:
1776301-7 Models
Wire Gauge:
12-22 AWG
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2294065
Package:
Bulk
Top Termination:
Screws
Terminal Screw Finish:
Zinc, Non-Hexavalent Chromate
Number of Wire Entries:
4
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
13 Weeks
Number of Circuits:
2
Current Rating (Amps):
16A
Features:
Fuse
Mounting Type:
Chassis, Panel
Color:
Gray
Series:
503Si, Buchanan
Operating Temperature:
-35°C ~ 100°C
Pitch:
0.394" (10.00mm)
Base Product Number:
1776301
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1776301-7. The materials of the terminal screw include steel. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. While it has a closed bottom termination. It is designed from highly reliable polyamide (pa66), nylon 6/6 insulating material. The product comes as a eurostyle terminal strip terminal block. Moreover, the product has a nominal 400v voltage rating. It is a enclosed barrier. Moreover, the product has a wire gauge of 12-22 awg. It comes in 2 of rows. It is shipped in bulk package . It is designed with screws at top terminals. While the screw of terminal is finished with splendid zinc, non-hexavalent chromate materials. It features 4 wire entries. Its typical moisture sensitivity level is 1 (unlimited). It has a long 13 weeks standard lead time. It integrates 2 circuits. Additionally, the product's output is 16a. The splendid features of the product include fuse. The product is available in chassis, panel configuration. It has a classic gray colour. The product 503si, buchanan, is a highly preferred choice for users. The product has -35°c ~ 100°c operating temperature range. Moreover, the product is 0.394" (10.00mm). Moreover, it corresponds to 1776301, a base product number of the product. The product is designated with the ear99 code number.
