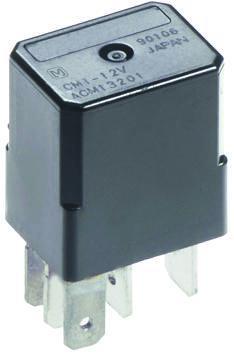

Panasonic SPDT Automotive Relay Plug In, 12V dc Coil, 1 A

Panasonic

Product Information

Life:
50000 Operations
Maximum Switching Voltage DC:
14V
Mounting Type:
Plug In
Coil Power:
1.5W
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Coil Voltage:
12V dc
Depth:
15mm
Height:
22mm
Length:
20mm
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPDT
Isolation Coil To Contact:
500V rms
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
Quick Connect
Coil Resistance:
96Ω
RoHs Compliant
Checking for live stock

The Panasonic CM1-R-12V is a compact, reliable SPDT automotive relay suitable for a variety of automotive and industrial applications. Featuring a 12V DC coil and 1A contact rating, this plug-in relay is engineered to provide efficient switching in electrical circuits, ensuring dependable operation under high-performance conditions.

Salient Features and Benefits of Buying the Panasonic Automotive Relay

  • SPDT configuration offers versatile switching options for a wide range of circuits.
  • 12V DC coil voltage ensures compatibility with most automotive power systems.
  • 1A contact rating is ideal for controlling low-power electrical components.
  • Plug-in design allows for easy and secure installation and replacement.
  • Compact size enhances space efficiency in automotive electrical systems.

Engineered for Reliable Performance

The CM1-R-12V is built to provide consistent performance even in harsh automotive environments. Its robust design ensures long service life, while the 12V DC coil operates efficiently, allowing the relay to handle critical switching tasks in vehicle electrical systems. The high-quality construction also helps protect the relay against vibration and environmental stressors, ensuring uninterrupted operation.

Wide Application Range

  • Control of automotive lighting, horns, or other low-power accessories.
  • Used in relay-based circuits in vehicles and industrial machinery.
  • Suitable for switching control signals in automotive systems.
  • Ideal for high-demand electrical control in automotive applications.
  • Commonly used in power distribution and system automation for vehicles.

pdf icon
CM Series Datasheet(Technical Reference)
